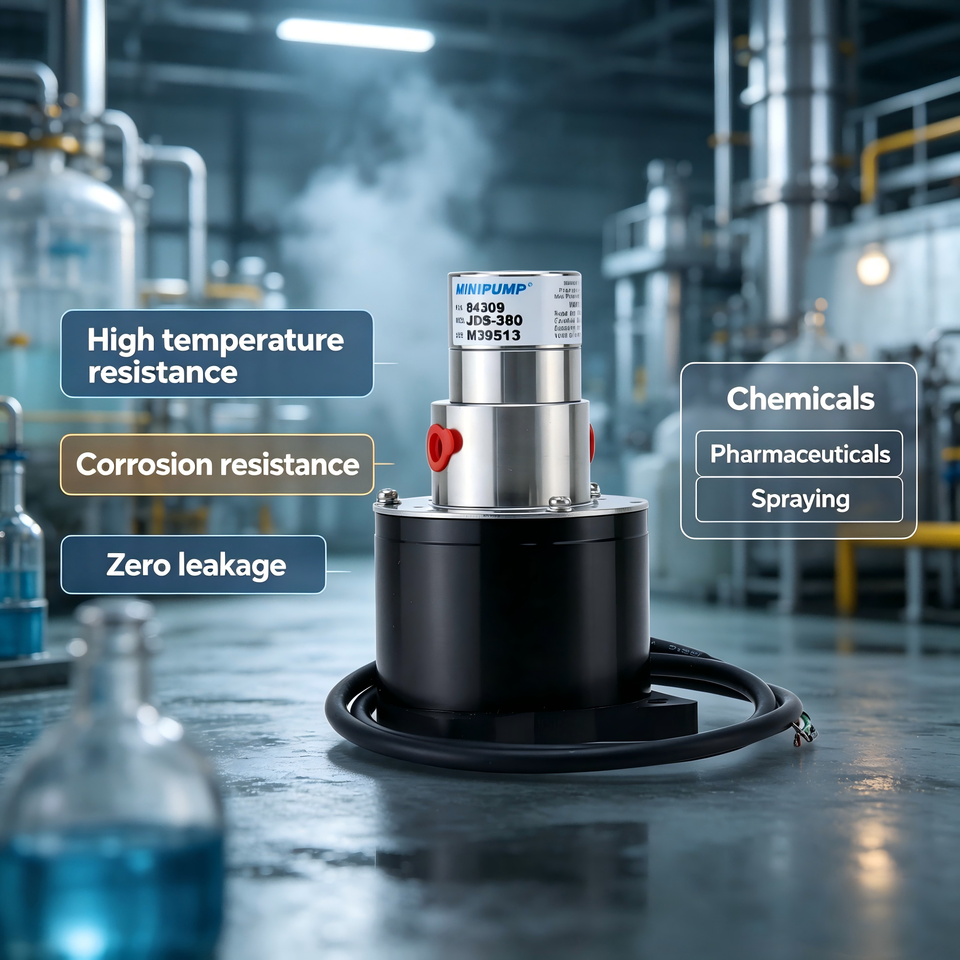

Corrosion Resistant High Temperature Magnetically Coupled Micro Magnetic Drive Gear Pump for Precision Fluid Industrial Chemical

No reviews yet

Attributes

Chemical Industryapplication
Gear Pumpstructure
3.6L/minMax Flow Rate
0.4MPaMax Pressure
Electricpower source
Alcohol, oils, WaterChemical Compatibility
Sealing Material:Ceramic, PTFE, Magnetic, Stainless Steel
Applicable temperature:-40 to 105 degrees Celsius
Connection Type:Flange Connection
Material:Stainless Steel
Control Method:Fully Automatic Control
motor:Servo Motor, Brushless DC Motor, Stepper Motor
warranty:1 Year
customized support:OEM, ODM, OBM
pressure:Low Pressure
model number:GQA095ESLB01
place of origin:Guangdong, China
brand name:DOCOD
Nominal Displacement:0.95mL/rev
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:G1/8-28
Max. Flow Rate:3.6L/min(water as medium)
Max. Pressure:0.4MPa
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius

Key attributes

application
Chemical Industry
structure
Gear Pump
Max Flow Rate
3.6L/min
Max Pressure
0.4MPa
power source
Electric
Chemical Compatibility
Alcohol, oils, Water
Sealing Material
Ceramic, PTFE, Magnetic, Stainless Steel
Applicable temperature
-40 to 105 degrees Celsius
Connection Type
Flange Connection
Material
Stainless Steel
Control Method
Fully Automatic Control
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
Low Pressure
model number
GQA095ESLB01
place of origin
Guangdong, China
brand name
DOCOD
Nominal Displacement
0.95mL/rev
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Max. Flow Rate
3.6L/min(water as medium)
Max. Pressure
0.4MPa
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius

Packaging and delivery

Selling Units
Single item

Lead time

Customization options

motor(+ from /Min. order: 1 piece)
View details

Product descriptions from the supplier

Customizable
1 - 99 pieces
$24231
100 - 499 pieces
$19385
>= 500 pieces
$16154

Variations

Select now

Flow Rate: 3.6L/min

3.6L/min

maximum head: other

other

type: gear pump

gear pump

voltage

24VDC
Customization options
motor (Min. order: 1 piece)

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
