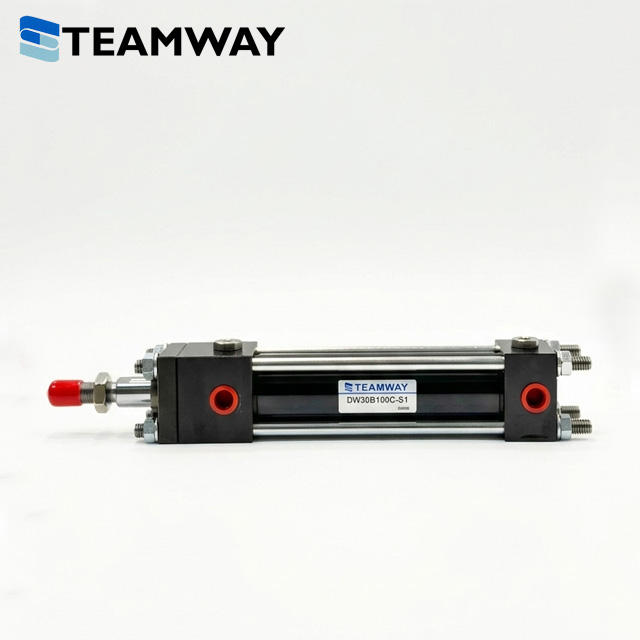

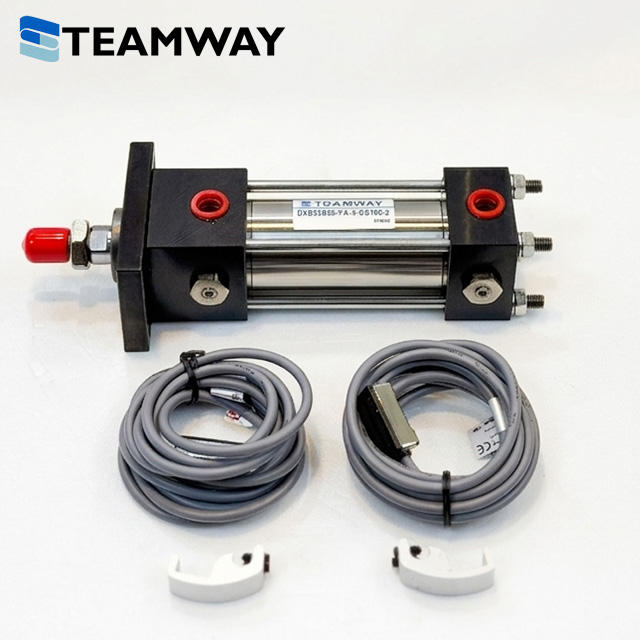

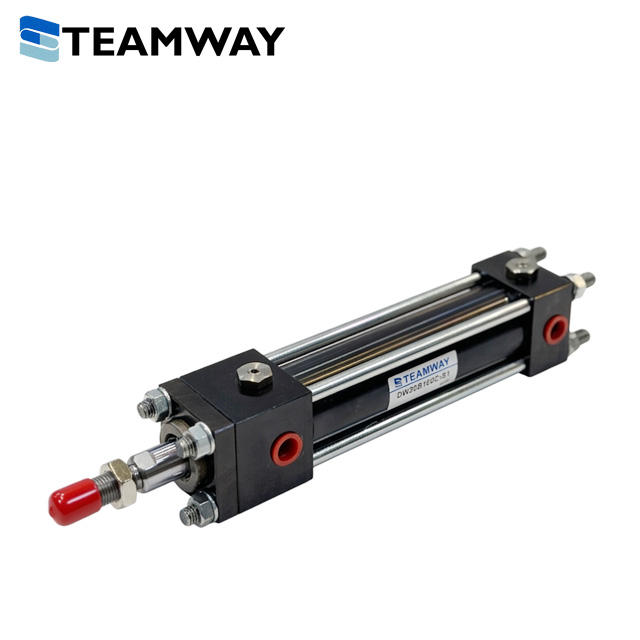

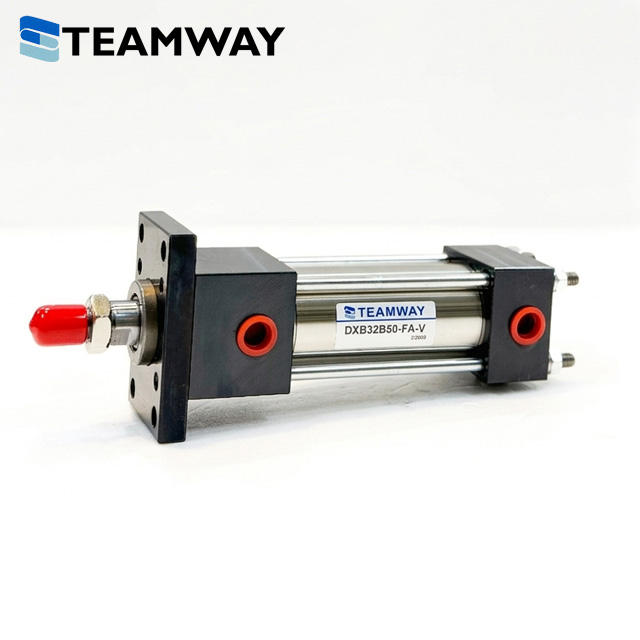

TEAMWAY DX/DW Series Square Hydraulic Cylinder 3.5MPa Tie-rod Oil Cylinder Bore 32-100mm Max Pressure 5MPa Hard Chrome Plated

No reviews yet
$530
1-49 pieces
$350
50-99 pieces
$125
≥100 pieces
Select now

Model Number

DWB (Bore 32-100, Stroke up to 500mm)
DXB (Bore 32-100, Stroke up to 500mm)
DXB-LN01P (Bore 32-100, Stroke up to 500mm)
Customization options
Stroke+$0/piece (Min. order: 1 piece)
Seal Material+$0/piece (Min. order: 1 piece)

Key attributes

Inner Tube Diameter

32mm,40mm,50mm,63mm,80mm,100mm

Maximum Stroke

500 mm

Material

Carbon Steel

Surface Treatment Of Piston Rod

Hard Chrome Plated

Place of Origin

Other

Outer Tube Diameter

44, 52, 65, 80, 100, 125 mm

At a glance

  • Max Pressure 5MPa: With a maximum pressure of 5 MPa, this hydraulic cylinder can handle demanding industrial applications, ensuring reliable performance in high-pressure fluid control systems.

  • Bore Size Range 32-100mm: A bore size range of 32mm to 100mm allows for versatile application and compatibility with a wide range of equipment, providing flexibility in system design and integration.

  • Hard Chrome Plated Rod: The hard chrome plating on the piston rod enhances resistance to wear and corrosion, extending the lifespan and maintaining consistent performance in harsh environments.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Inner Tube Diameter
32mm,40mm,50mm,63mm,80mm,100mm
Maximum Stroke
500 mm
Material
Carbon Steel
Surface Treatment Of Piston Rod
Hard Chrome Plated
Place of Origin
Taiwan
Outer Tube Diameter
44, 52, 65, 80, 100, 125 mm
Overall Length
150mm - 700mm
Rod Diameter
16, 20, 25, 30, 35, 45, 55 mm
Type
Compact Square Hydraulic Cylinder
Warranty
1 Year
Brand Name
TEAMWAY
Dimension(L*W*H)
Standard Square / Custom
For Pipe Size
PT 1/4", PT 3/8", PT 1/2"
Power(W)
None
Pressure
3.5 MPa (35 kgf/cm²)
Showroom Location
None
Stroke
50mm - 500mm
Structure
None
Weight
3.5
Max. Pressure
5 MPa (50 bar)
Bore Size Range
32mm - 100mm
Working Fluid
Hydraulic Oil
Seal Options
NBR / PU / Viton
Cushion Type
Adjustable Cushion
Mounting
FA/FB/LA/LB/TC
Origin
Made in Taiwan
