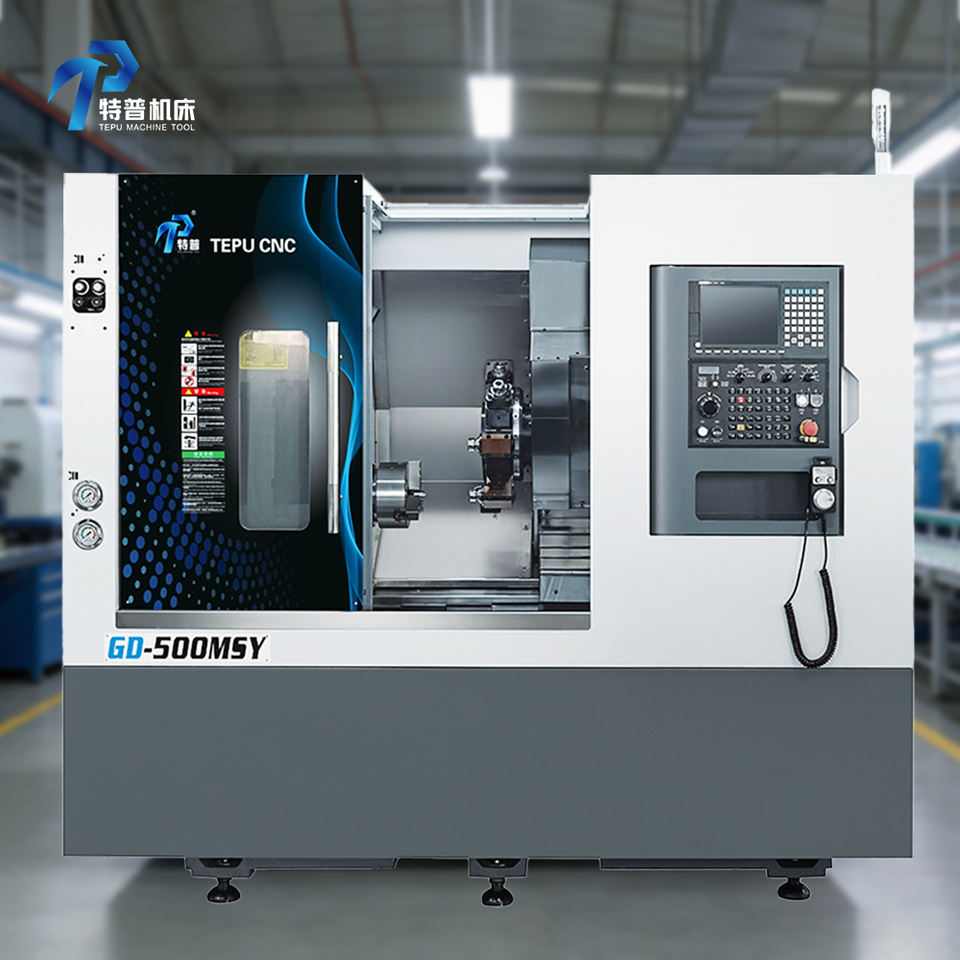

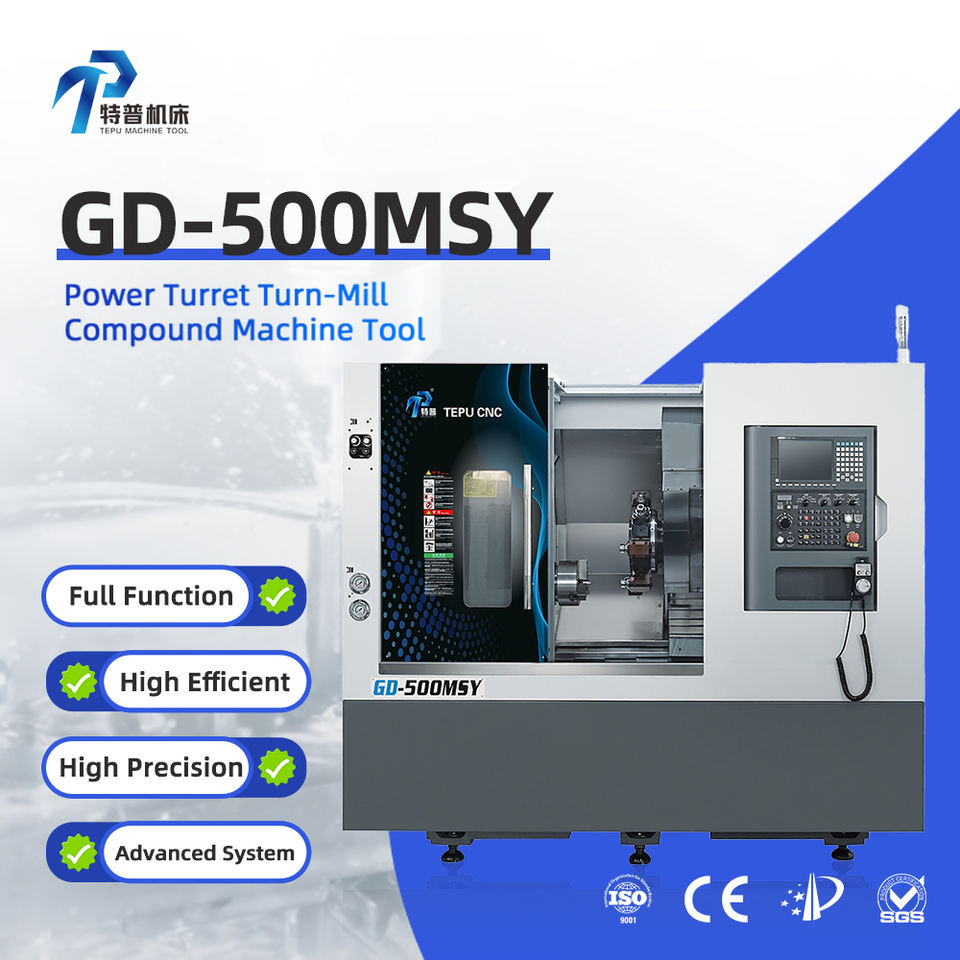

TEPU Tour Machine Pour Le Metal Axial Live Tool Holder Heavy Duty Capstan Turret Cnc 3 Axis Lathe Machine Cnc Mill Lathe

No reviews yet
$32,571
Minimum order quantity: 1 set
Select now

max. swing diameter (mm)

500

spindle motor power(kw)

11kW

Key attributes

cnc control system

22TB

machining capacity

Turning, Drilling and Tapping

number of axes

3

no. of spindles

Single

tool post stations

15

max. length of workpiece (mm)

500

At a glance

  • Repeatability X/Y/Z: Ensures consistent and precise machining with a repeatability of ±0.005 mm, reducing errors and improving product quality.

  • Positioning Accuracy: Offers high positioning accuracy of ±0.01 mm, ensuring that the machine can perform complex and detailed operations with precision.

  • Max Swing Diameter: With a maximum swing diameter of 500 mm, this lathe can handle a wide range of workpiece sizes, making it versatile for various applications.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Service

Free replacement parts & online technical support
Free replacement parts & online technical support

Key attributes

cnc control system
22TB
machining capacity
Turning, Drilling and Tapping
number of axes
3
no. of spindles
Single
tool post stations
15
max. length of workpiece (mm)
500
key selling points
Long Service Life, High-Rigidity Integral Base, Precision Spindle Unit, Stable High-Precision Transmission, Precise Pulse Speed Regulation, High-Precision Feed Transmission, Comprehensive Protection, Flexible Chuck Configuration, Multi-Function Integration
repeatability (x/y/z) (mm)
±0.005
positioning accuracy (mm)
±0.01
warranty
1 Year
type
Combination Lathe Milling Machine
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
N/A
travel (x axis)(mm)
200
travel (z axis)(mm)
550
width of bed (mm)
360
place of origin
Zhejiang, China
dimension(l*w*h)
2500*1650*2100
brand name
TEPU
model number
GD-500MSY
weight
4500
range of spindle speed
20 - 4000
Servo Spindle Motor
11 Kw
Unit Spindle
A2-6
Hollow Hydraulic Chuck
8 inches
Clamping system
Hydraulic Station , Hydraulic Cylinder 852
Turret Type
BMT45 Power Turret with Y-axis
Tailstock (optional)
MT5/Servo Tailstock
Up and down travel of Y-axis turret
±50 mm
Motorized spindle
11 Kw
X/Z axis motor
2.4(130) Kw
Tool speed
5000 rpm

Packaging and delivery

Selling Units
Single item
Single package size
260X175X220 cm
Single gross weight
4500.0 kg

Lead time
