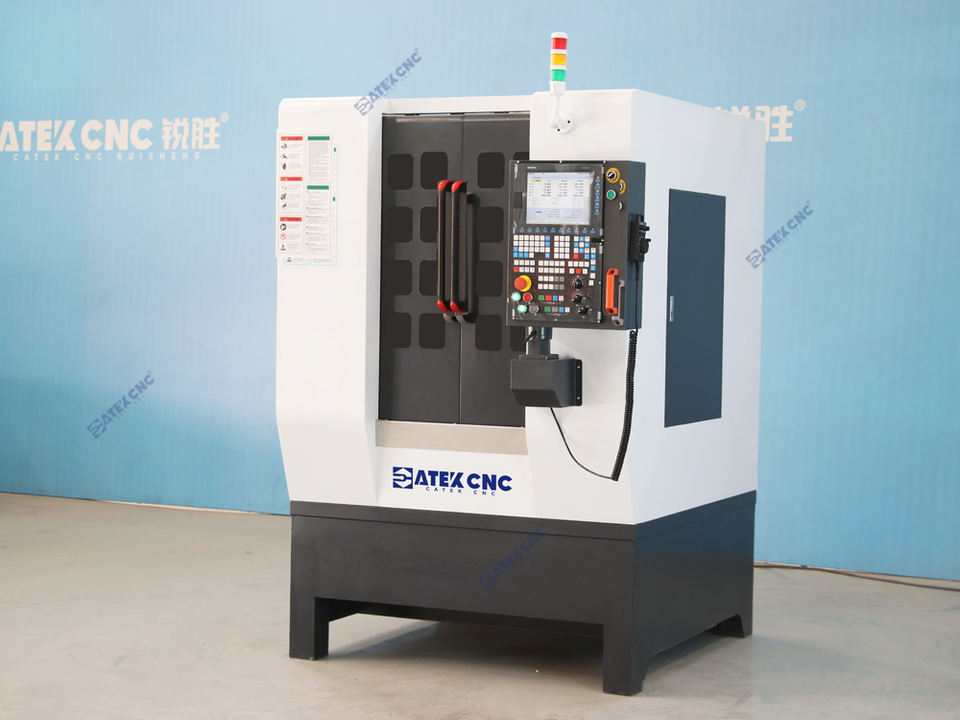

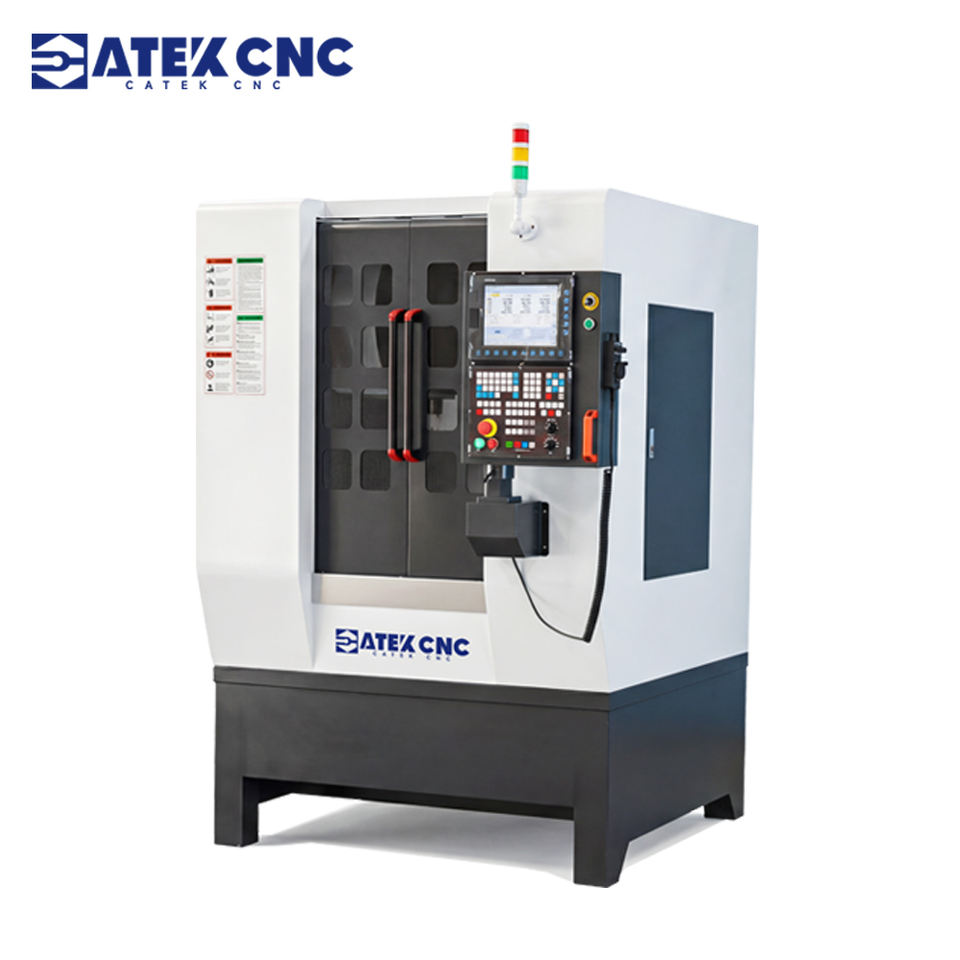

The Best Technology Five-axis Metal Milling Machine CNC Milling Machine Equipped with High-quality Electrical Components

No reviews yet22 soldbillboard#2 most popular in CNC Milling Machines
$6,500
1-4 sets
$5,500
≥5 sets
Select now

table size

400X400
600X600
700X500
800x400
1000x1000
1200x600
1200x1500
400X600
600X900

spindle motor power(kw)

5.5 kW
6 kW
3 kW
7 kW
9 kW
3.5kw
7.5kw
Customization options
Packaging+$0/set (Min. order: 1 set)
Logo/graphic design+$0/set (Min. order: 1 set)
Name plate+$0/set (Min. order: 1 set)
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

voltage

380 V, 220 V, 110 V

table travel (x) (mm)

600, 500, 400, 900

table travel (y) (mm)

900, 500, 600, 1200

table travel (z) (mm)

250, 300, 350, 400

positioning accuracy

±0.001

repeatability (x/y/z) (mm)

±0.001

At a glance

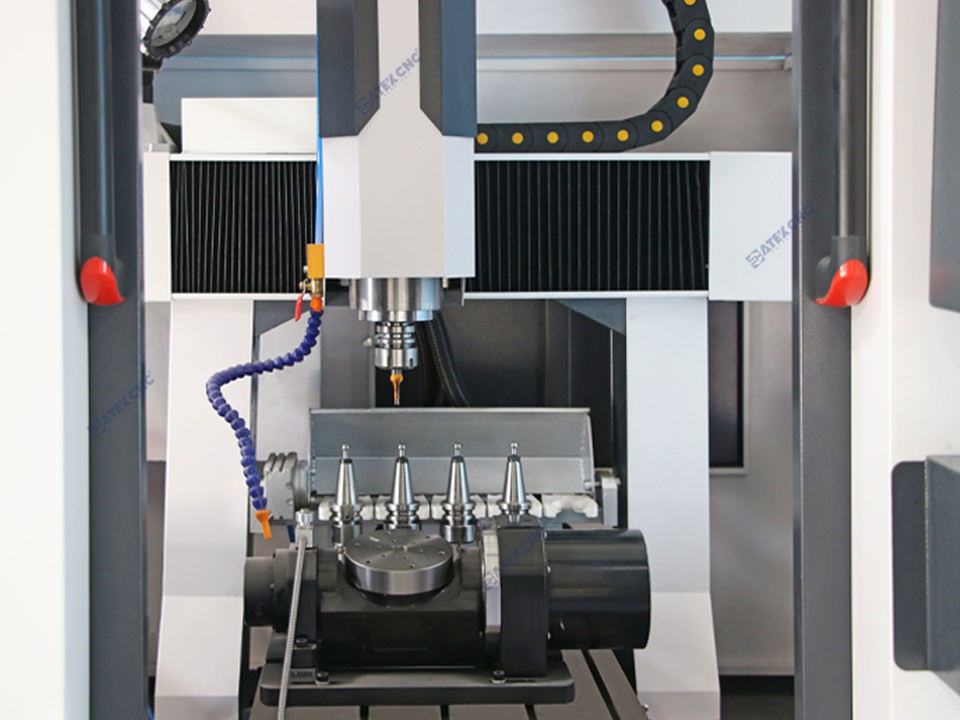

  • Five Axis Rotary: The five-axis trunnion-type rotary axis allows for precise and complex machining, enhancing the versatility and accuracy of the milling process.

  • High Precision Ball Screw: The high-precision TBI ball screw ensures smooth and accurate movement, improving the overall precision and repeatability of the machine.

  • Heavy Duty Worktable: The heavy-duty T-slot worktable provides a stable and robust platform for various materials, ensuring consistent and reliable machining results.

  • Automatic Tool Changer: The flip-top linear automatic tool changer holds multiple tools and automatically changes them during machining, saving time and increasing efficiency.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Service

Free replacement parts & online technical support
Free replacement parts & online technical support

Key attributes

type
VERTICAL
number of axes
5
voltage
380 V, 220 V, 110 V
table travel (x) (mm)
600, 500, 400, 900
table travel (y) (mm)
900, 500, 600, 1200
table travel (z) (mm)
250, 300, 350, 400
positioning accuracy
±0.001
repeatability (x/y/z) (mm)
±0.001
spindle taper
BT30, BT40
cnc control system
Weihong NK300
machining capacity
Heavy Duty
no. of spindles
ATC
warranty
3 Years
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Automatic
place of origin
Shandong, China
max. table load(kg)
400
range of spindle speed
0 - 24000
brand name
CATEK CNC
model number
CK-6060-5S
dimension(l*w*h)
1800x1900x2050mm
weight
1180
Product name
Cnc Milling Machine 5 Axis
Spindle
3.5KW high-speed water-cooled automatic tool change spindle
Spindle Speed
6000-24000rpm
Tool Magazine
Flip-top linear tool magazine
Tool Holder Type
NBT30 ER32
Rotary Axis
5-axis trunnion-type rotary axis (100mm diameter)
Worktable
Heavy-duty T-slot worktable
Drive Mode
Weihong 750W bus absolute value servo motors
Transmission Mode
High-precision tbi ball screw
Guideways
Taiwan Hiwin 25 high-precision linear square rails / flange sliders

Packaging and delivery

Selling Units
Single item
Single package size
150X180X180 cm
Single gross weight
1450.000 kg

Lead time

Customization options

Packaging(+ from +$0/set/Min. order: 1 set)
Logo/graphic design(+ from +$0/set/Min. order: 1 set)
Name plate(+ from +$0/set/Min. order: 1 set)
voltage(+ from +$0/set/Min. order: 1 set)
