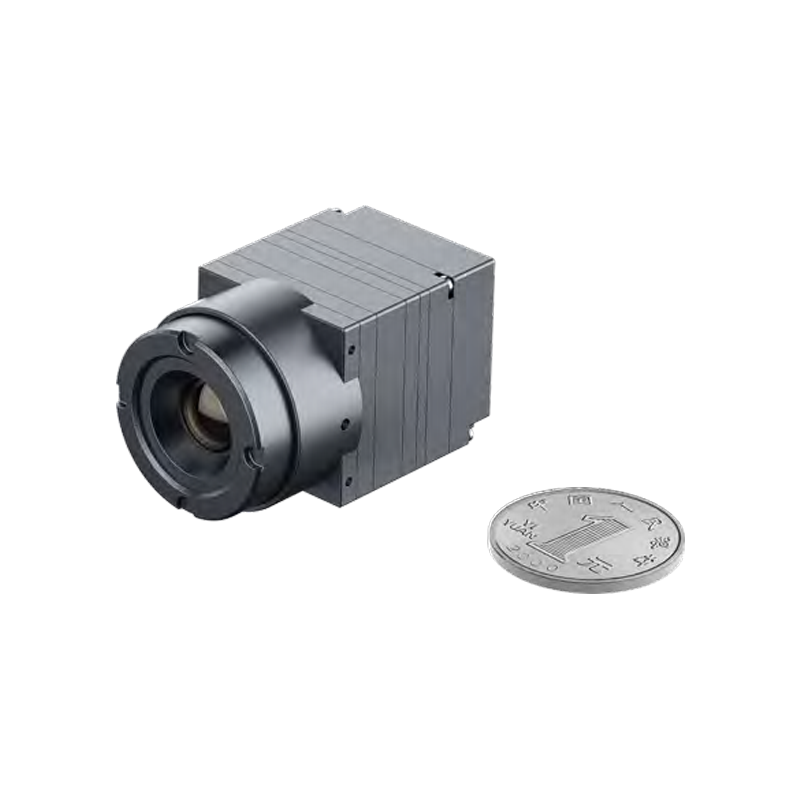

UCC3 UCC3-Movement Camera for FPV Drone Car Boat 640x512/384x288 Pixel Optional Focal Distance Detector Type VOx High Frame Rate
Store rating:4.4
(16 reviews)

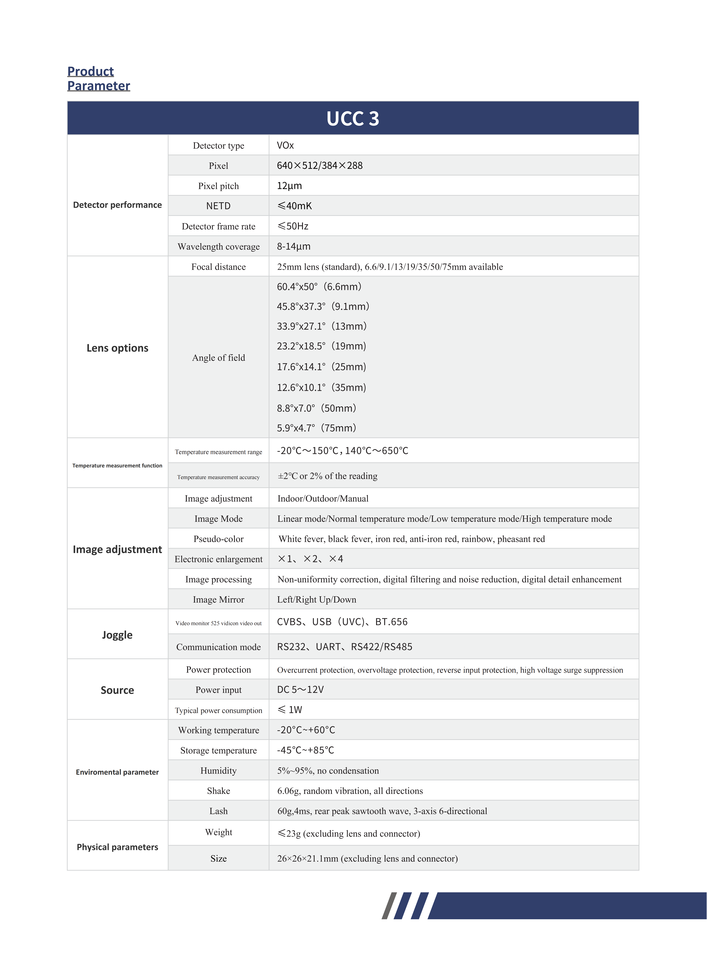

Attributes
Otherscompatible brand
otherMaterial
otherbrand name
Yesprivate mold
Chinaplace of origin
VOxDetector type
Pixel:640*512 / 384*288
Pixel pitch:12μm
NETD:≤40mK
Detector frame rate:≤50Hz
Wavelength coverage:8-14μm
Focal distance:25mm lens (standard), 6.6/9.1/13/19/35/50/75mm available
Angle of field:60.4°*50°(6.6mm)/45.8°*37.3°(9.1mm)/33.9°*27.1°(13mm)
Temperature measurement range:-20℃-150℃,140℃-650℃
Image adjustment:Indoor/Outdoor/Manual
Electronic enlargement:*1,*2,*4
Image Mirror:Left/Right Up/Down
Communication mode:RS232,UART,RS422/RS485
Power input:DC 5-12V
Typical power consumption:≤ 1W
Working temperature:-20°C - +60°C
Storage temperature:-45℃ - +85℃
Key attributes
compatible brand
Others
Material
other
brand name
other
private mold
Yes
place of origin
China
Detector type
VOx
Pixel
640*512 / 384*288
Pixel pitch
12μm
NETD
≤40mK
Detector frame rate
≤50Hz
Wavelength coverage
8-14μm
Focal distance
25mm lens (standard), 6.6/9.1/13/19/35/50/75mm available
Angle of field
60.4°*50°(6.6mm)/45.8°*37.3°(9.1mm)/33.9°*27.1°(13mm)
Temperature measurement range
-20℃-150℃,140℃-650℃
Image adjustment
Indoor/Outdoor/Manual
Electronic enlargement
*1,*2,*4
Image Mirror
Left/Right Up/Down
Communication mode
RS232,UART,RS422/RS485
Power input
DC 5-12V
Typical power consumption
≤ 1W
Working temperature
-20°C - +60°C
Storage temperature
-45℃ - +85℃
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Custom packaging(+ from /Min. order: 2,000 pieces)
View details
Product descriptions from the supplier
Warning/Disclaimer
Compliance Reminder for Prohibited and Restricted productsView more
California Proposition 65 Consumer WarningView more
Customizable
50 - 4,999 pieces
$35350
>= 5,000 pieces
$32398
Variations
Select nowcolor: Black
使用型号: /
/
型号: UCC3- movement
UCC3- movement
附件类型
/
Customization options
Custom packaging (Min. order: 2,000 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
