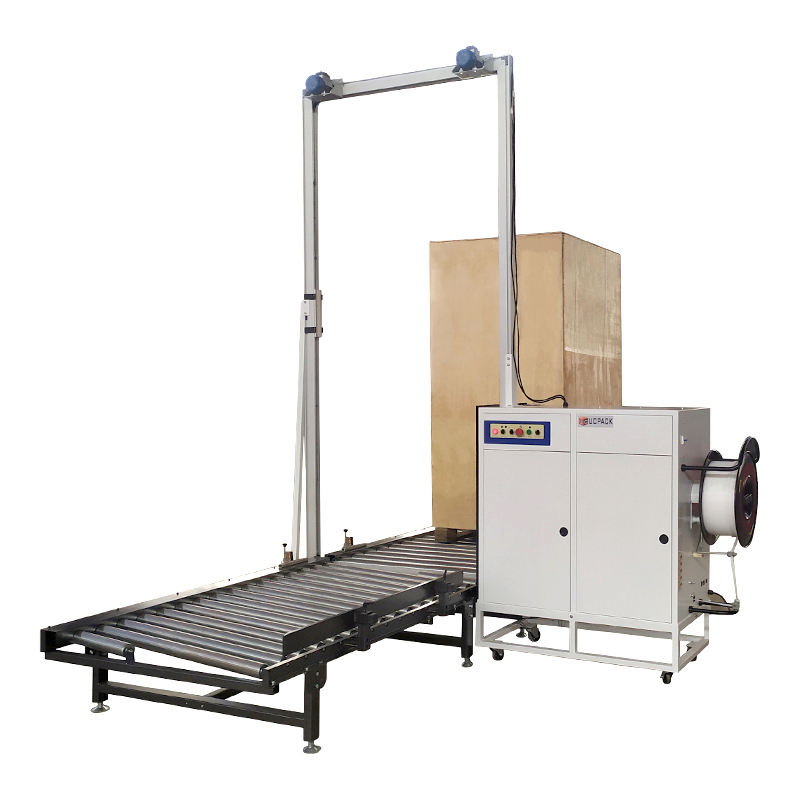

UDB-103B Fully Automatic Inline Side Seal Strapping Machine for Refrigerator Fridge Freezer Production Line
Store rating:5.0
(7 reviews)
Attributes
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textilesapplication
Wooden Casepackaging type
Plastic, PP Strappackaging material
380 VAC Three-phase 50/60 HzVoltage
Electricdriven type
Fully Automaticautomatic grade

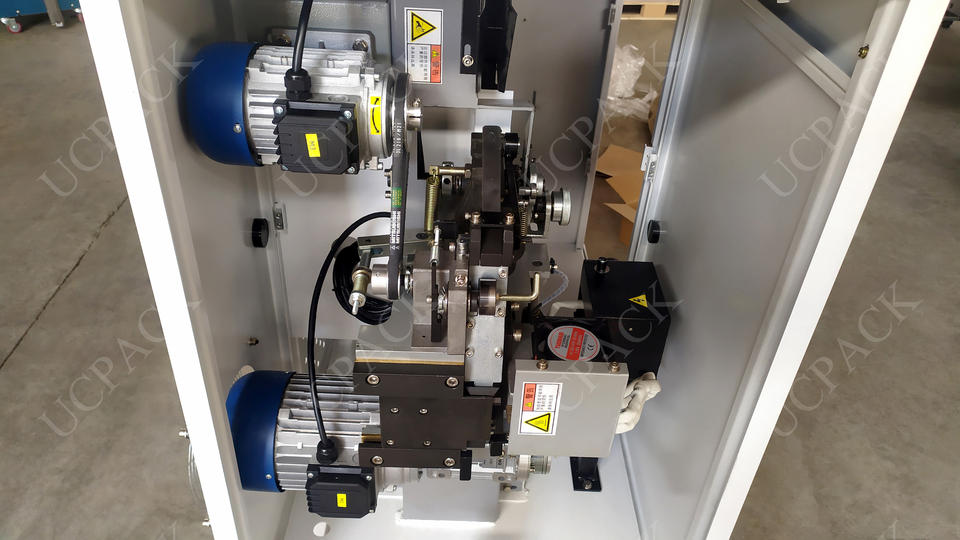

core components:Motor, Heating Head, Strapping Head
warranty:1 Year
After-sales Service Provided:Online support, Video Technical Support, Free Spare Parts
machinery test report:Provided
video outgoing-inspection:Provided
key selling points:Easy To Operate, Long Service Life
place of origin:Shandong, China
brand name:UCPACK
dimension(l*w*h):L 1860 mm x W 628 mm x H 1350 mm
Arch Size:W 600 mm x H 800 mm
Strapping Size Min.:W 80 mm x H 100 mm
Strapping Head Position:Side, 420 mm Above Bottom Arch Inner Edge
Speed:≤ 2.5 Sec/Strip
Tension:0 - 60 kg, Adjustable
Worktable Height:Std. 450 mm
Strap:9 - 15 mm (± 1 mm) Width x 0.55 - 1.0 mm (± 0.1 mm) Thickness PP Strap
Number of Strips Per Package:Parallel 1 - 2 Strips Per Package
Voltage:380 VAC 3 ph 50/60 Hz
Power:1.0 kw / 5 A
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
application
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
packaging type
Wooden Case
packaging material
Plastic, PP Strap
Voltage
380 VAC Three-phase 50/60 Hz
driven type
Electric
automatic grade
Fully Automatic
core components
Motor, Heating Head, Strapping Head
warranty
1 Year
After-sales Service Provided
Online support, Video Technical Support, Free Spare Parts
machinery test report
Provided
video outgoing-inspection
Provided
key selling points
Easy To Operate, Long Service Life
brand name
UCPACK
dimension(l*w*h)
L 1860 mm x W 628 mm x H 1350 mm
place of origin
Shandong, China
Arch Size
W 600 mm x H 800 mm
Strapping Size Min.
W 80 mm x H 100 mm
Strapping Head Position
Side, 420 mm Above Bottom Arch Inner Edge
Speed
≤ 2.5 Sec/Strip
Tension
0 - 60 kg, Adjustable
Worktable Height
Std. 450 mm
Strap
9 - 15 mm (± 1 mm) Width x 0.55 - 1.0 mm (± 0.1 mm) Thickness PP Strap
Number of Strips Per Package
Parallel 1 - 2 Strips Per Package
Voltage
380 VAC 3 ph 50/60 Hz
Power
1.0 kw / 5 A
Packaging and delivery
Selling Units
Single item
Package size per batch
165X80X160 cm
Gross weight per batch
345.000 kg
Lead time
Customization options
Arch Size(+ from +$1/set/Min. order: 1 set)
View details
Product descriptions from the supplier
FREE shipping capped at $20
1 - 9 sets
$3,200
>= 10 sets
$3,000
*Taxes and import charges will be calculated at checkout
Variations
Select nowpower: 1.0 kw(1.34hp)
1.0 kw(1.34hp)
model number: UDB-103B
UDB-103B
max speed
2.5 Sec/Strip
