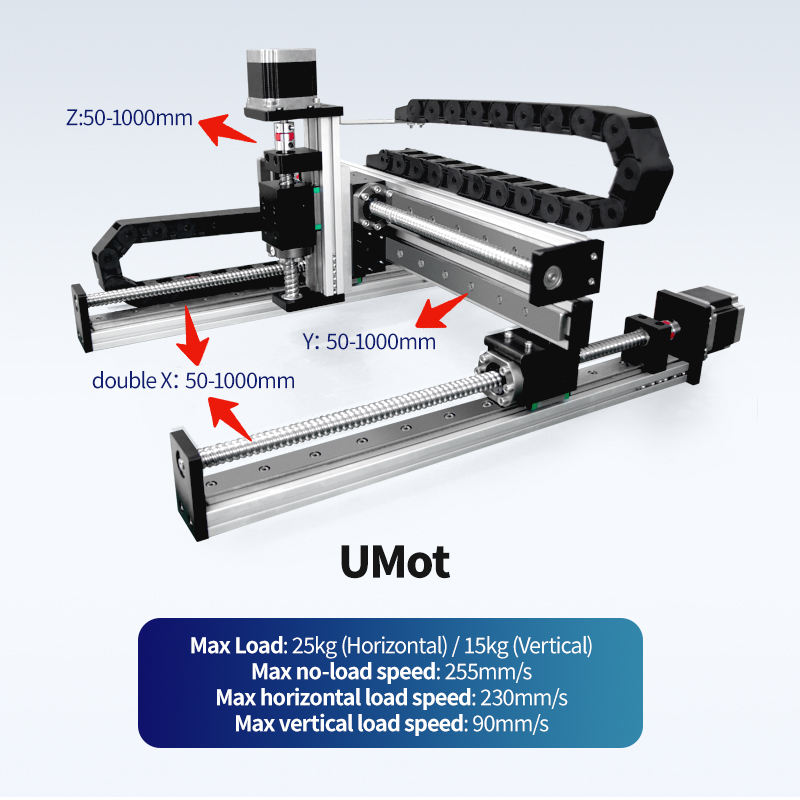

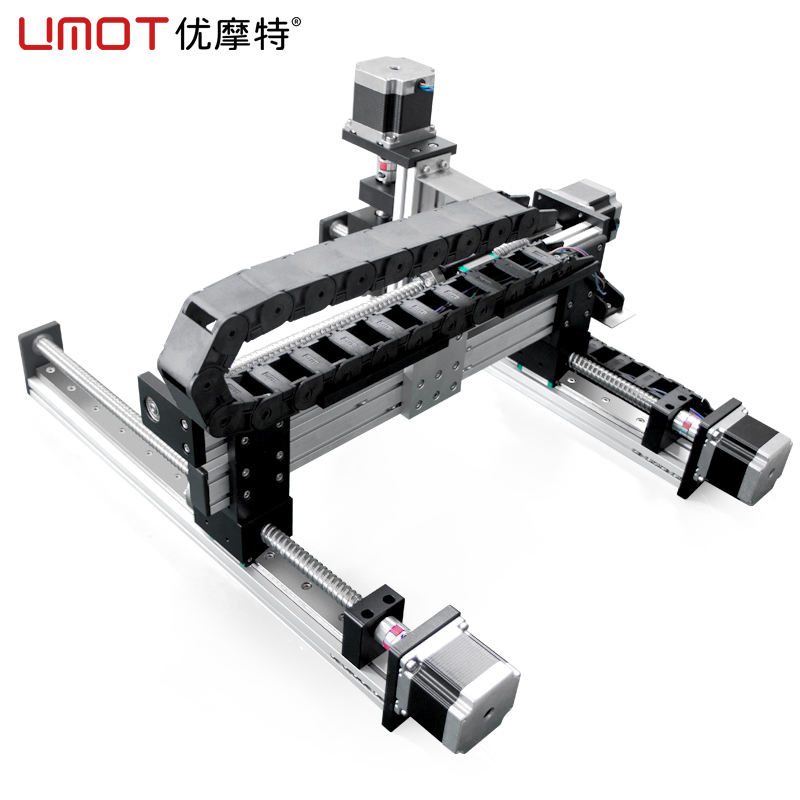

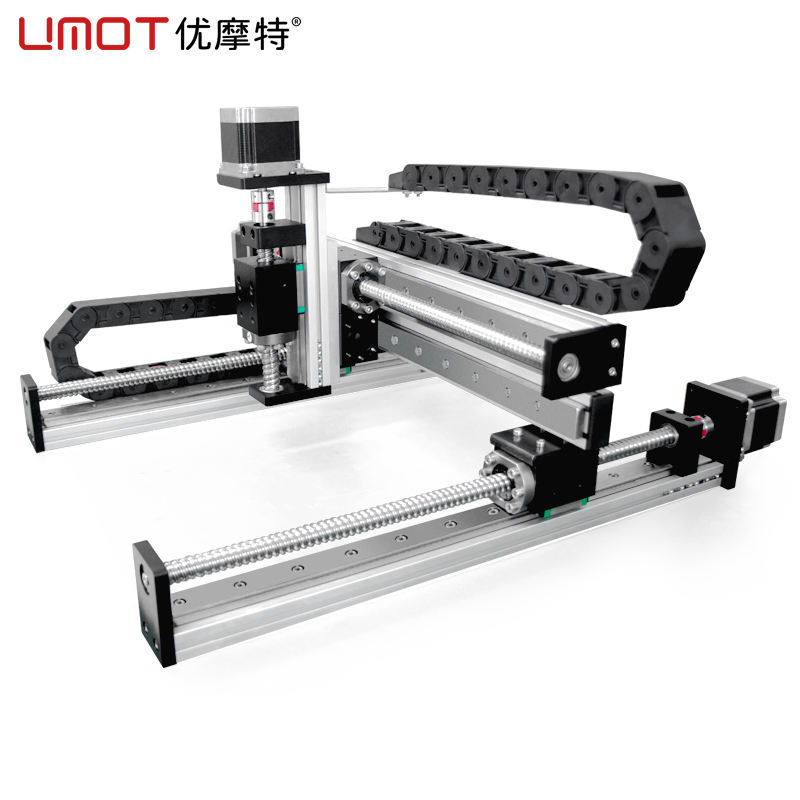

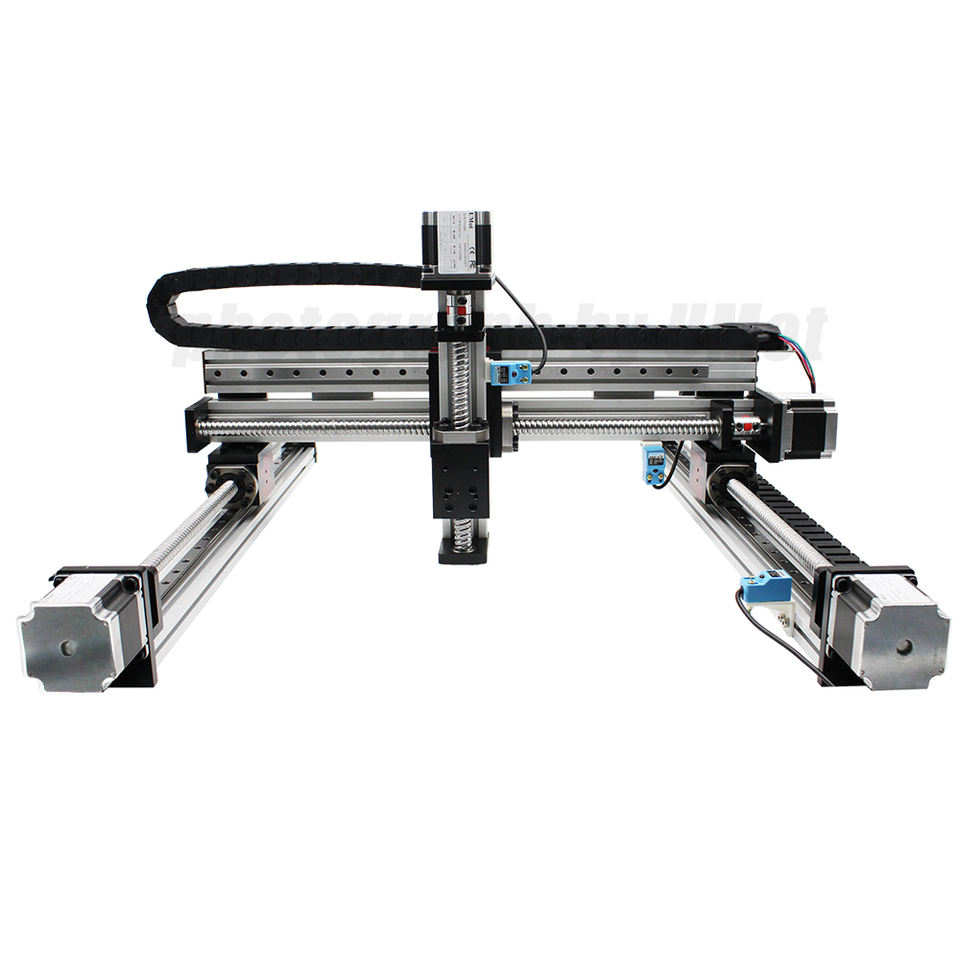

UMOT Stroke 50-1000mm Max Load 25kg Multi-Axis Ball Screw Linear Motion Gantry Module Cartesian Robot Xyz 3-Axis Gantry Robot
No reviews yetcertified
certified
Attributes
Bearing, Motorcore components
Providedmachinery test report
1.5 yearwarranty
Providedvideo outgoing-inspection
SW40 Gantry robot XYZ tablemodel number
Bearing steelmaterial
brand name:UMOT
weight (kg):4.5
place of origin:Chongqing, China
Effective Stroke:50/100/150/200/250/300/350/400/450/500/600/700/800/900/1000mm
Standard motor:Nema23 Stepper Motor
Optional motor:nema17 Stepper Motor
Accuracy:±0.05mm
Ball screw diameter:16mm
Ball screw lead:5mm/10mm
Max load:25kg
Max full load speed:230mm/s
Max thrust:452N
Max speed:1200rpm

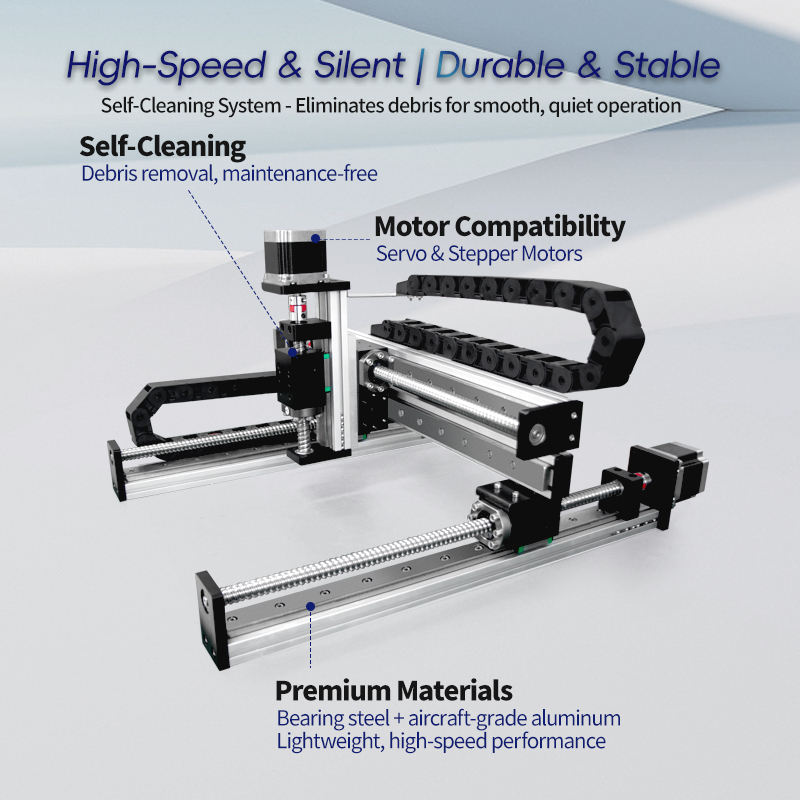

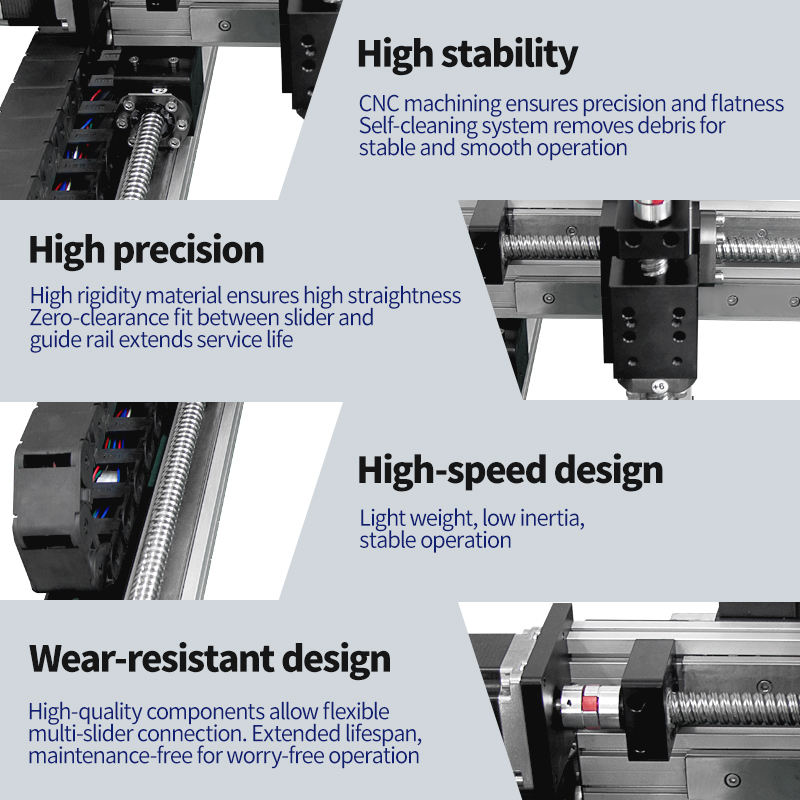

Product spotlightsAll-Steel Material: The all-steel construction ensures strong wear resistance and high precision, making it suitable for demanding industrial applications.
Accuracy ±0.05mm: High accuracy of ±0.05mm ensures precise and reliable performance, critical for tasks requiring fine control and repeatability.
Max Load 25kg: A maximum load capacity of 25kg allows for handling a wide range of payloads, making it versatile for various industrial tasks.
Service
Free replacement parts & online technical support
Key attributes
core components
Bearing, Motor
machinery test report
Provided
warranty
1.5 year
video outgoing-inspection
Provided
model number
SW40 Gantry robot XYZ table
material
Bearing steel
brand name
UMOT
weight (kg)
4.5
place of origin
Chongqing, China
Effective Stroke
50/100/150/200/250/300/350/400/450/500/600/700/800/900/1000mm
Standard motor
Nema23 Stepper Motor
Optional motor
nema17 Stepper Motor
Accuracy
±0.05mm
Ball screw diameter
16mm
Ball screw lead
5mm/10mm
Max load
25kg
Max full load speed
230mm/s
Max thrust
452N
Max speed
1200rpm
Packaging and delivery
Selling Units
Single item
Single package size
20X20X20 cm
Single gross weight
5.000 kg
Lead time
Customization options
Product customized(+ from +$20/piece/Min. order: 50 pieces)
View details
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
1 - 49 pieces
$230
50 - 499 pieces
$19045
≥ 500 pieces
$16355
Variations
Select nowguide width or diameter: 40mm
40mm
guide length
50-1000mm
Customization options
Product customized+$20/piece (Min. order: 50 pieces)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
