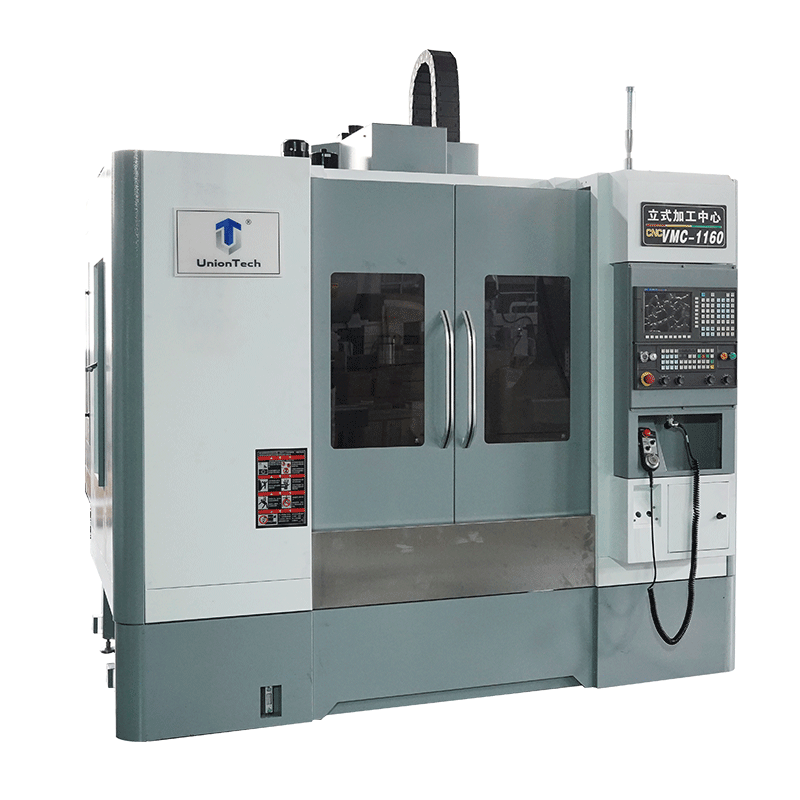

VMC650 3 Axis Cnc Machining Center with GSK System Vertical Machining Center Reducer Housings, Gear Box Bodies,

Store rating:5.0

(153 reviews)Complies with EU standards

Jinan Uniontech Machinery Co., Ltd.

Custom Manufacturer

10 yrs

CN

Attributes

VERTICALtype

1100table travel (x) (mm)

600table travel (y) (mm)

460table travel (z) (mm)

±0.003repeatability (x/y/z) (mm)

0.0075positioning accuracy

spindle taper:BT40

no. of spindles:Single

tool magazine capacity:16

cnc control system:GSK

machining capacity:Heavy Duty

voltage:220v/380v

table size:1100*600*600

warranty:1 Year

machinery test report:Provided

video outgoing-inspection:Provided

min. time of tool change(s):2

key selling points:Automatic

weight (t):7

max. table load(kg):1000

place of origin:SHANDONG

dimension(l*w*h):3400*2480*2960

range of spindle speed:1 - 10000 r.p.m

brand name:UnionTech

rapid feed speed:1 - 6000

Name:CNC Milling Machine

Working area:1100*600*600mm

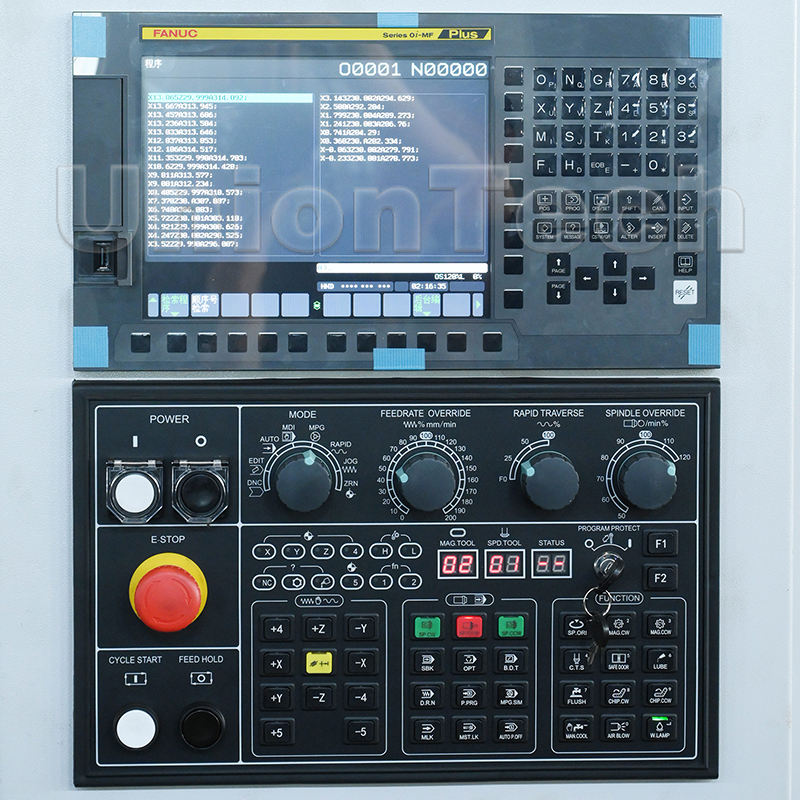

Control system:GSK/SYNTEC/FANUC/SIEMENS/Mitsubishi

Spindle:11KW Mechnical Spindle

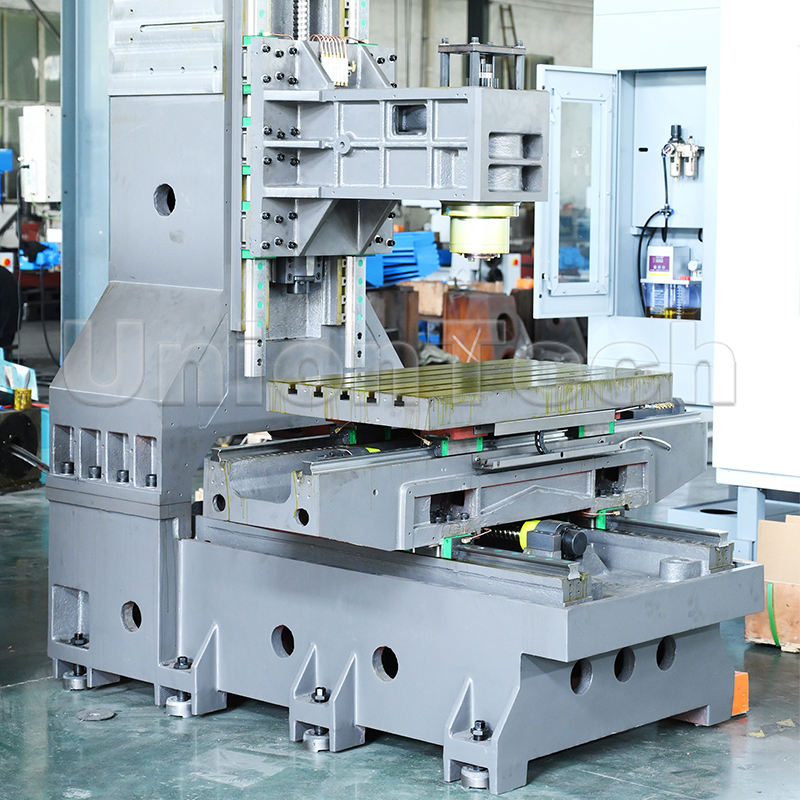

Machine structure:Cast iron

X, Y, Z Transmission:Japanese NACHI ball screw

Guide rails:HIWIN 45 for X, Y, Z axis

Tool Storage:24/30 ATC

External protection:Fully enclosed external protection

After-sales Service Provided:Engineers available to service machinery overseas

High-Precision Machining: This VMC1160 3-axis CNC milling machine offers exceptional precision with a positioning accuracy of 0.0075mm and repeatability of 0.005mm, making it ideal for various industries such as machinery repair shops, manufacturing plants, and construction works.
Versatile Applications: The machine can be used in multiple industries, including restaurant, retail, printing shops, food & beverage shops, and more, providing a wide range of applications and versatility.
Advanced Features: Equipped with a 11kw mechanical spindle, 24/30 ATC tool storage, and a fully enclosed external protection, this machine ensures efficient and safe operation.
Global Availability: With showrooms located in Saudi Arabia, Pakistan, Kenya, Argentina, UAE, Colombia, and Nigeria, the machine is easily accessible to customers worldwide.
Comprehensive Warranty: The machine comes with a 1-year warranty on the core components, including the bearing, and is supported by engineers available for overseas service, providing peace of mind for customers.

Service

On-site service & free replacement parts

On-site service & free replacement parts

1-year warranty

1-year warranty

Key attributes

type

VERTICAL

table travel (x) (mm)

1100

table travel (y) (mm)

600

table travel (z) (mm)

460

repeatability (x/y/z) (mm)

±0.003

positioning accuracy

0.0075

spindle taper

BT40

no. of spindles

Single

tool magazine capacity

16

cnc control system

GSK

machining capacity

Heavy Duty

voltage

220v/380v

table size

1100*600*600

warranty

1 Year

machinery test report

Provided

video outgoing-inspection

Provided

min. time of tool change(s)

2

key selling points

Automatic

weight (t)

7

max. table load(kg)

1000

place of origin

SHANDONG

dimension(l*w*h)

3400*2480*2960

range of spindle speed

1 - 10000 r.p.m

brand name

UnionTech

rapid feed speed

1 - 6000

Name

CNC Milling Machine

Working area

1100*600*600mm

Control system

GSK/SYNTEC/FANUC/SIEMENS/Mitsubishi

Spindle

11KW Mechnical Spindle

Machine structure

Cast iron

X, Y, Z Transmission

Japanese NACHI ball screw

Guide rails

HIWIN 45 for X, Y, Z axis

Tool Storage

24/30 ATC

External protection

Fully enclosed external protection

After-sales Service Provided

Engineers available to service machinery overseas

Packaging and delivery

Selling Units

Single item

Single package size

215X213X245 cm

Single gross weight

7000.000 kg

Lead time

Customization options

cnc control system(+ from /Min. order: 1 set)

View details

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Customizable

1 - 2 sets

$18,000

3 - 9 sets

$16,000

>= 10 sets

$15,000

Sample price: $20,000

Variations

model number: UT-VMC 1160

UT-VMC 1160

number of axes: 5

5

spindle motor power

11

Customization options

cnc control system (Min. order: 1 set)

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization
