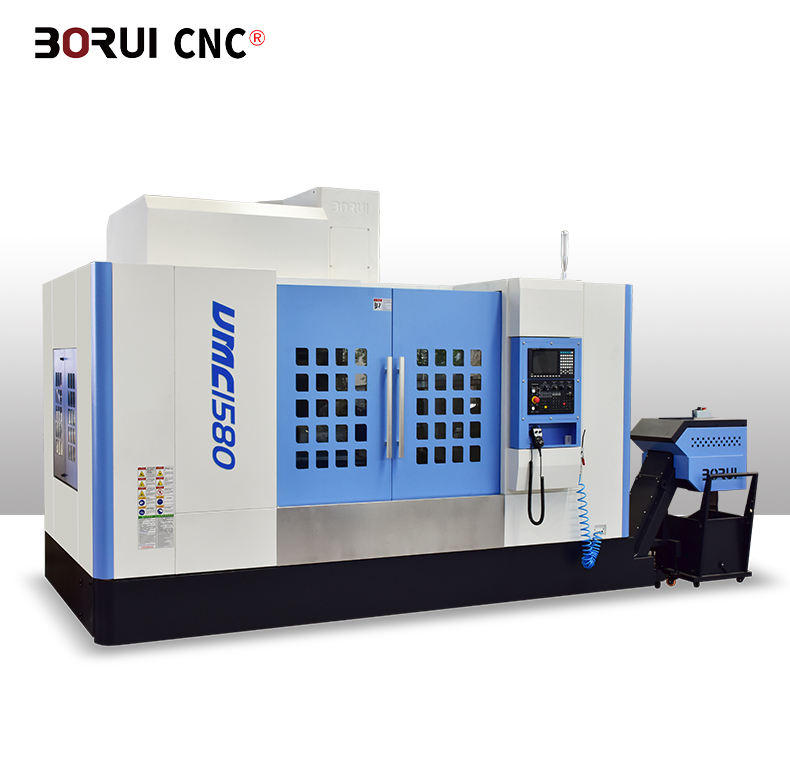

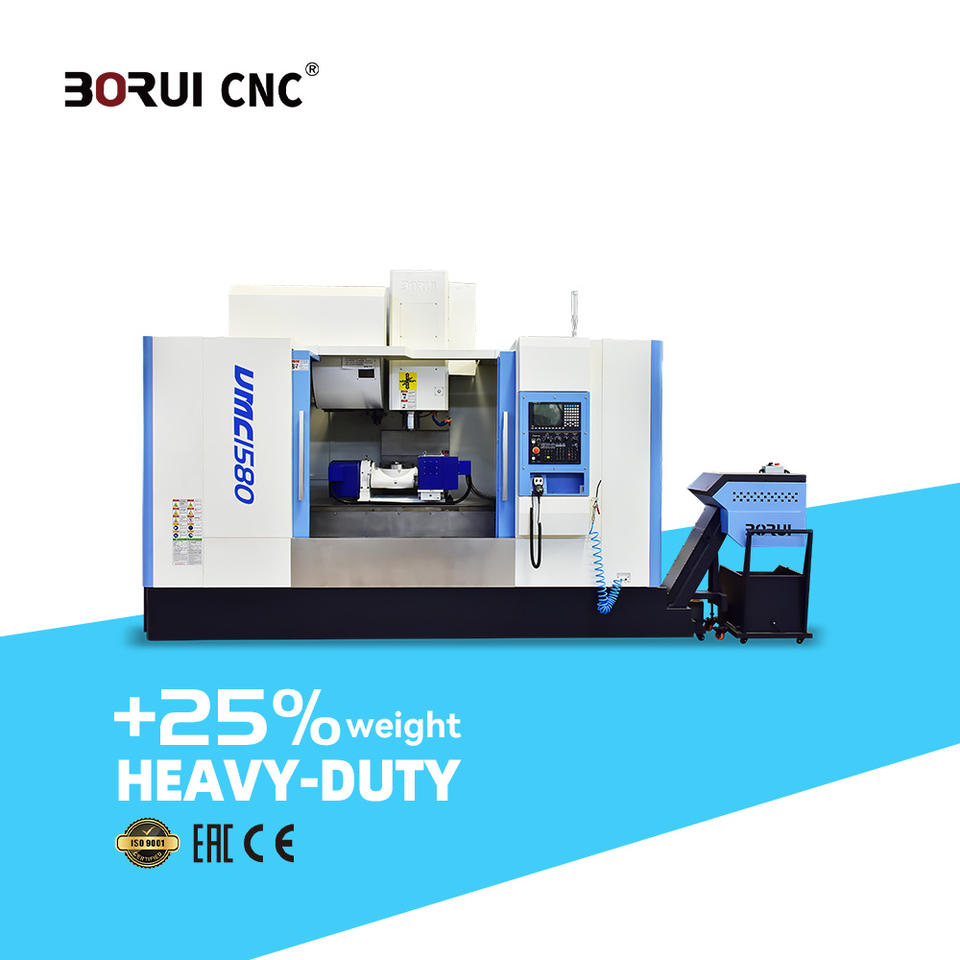

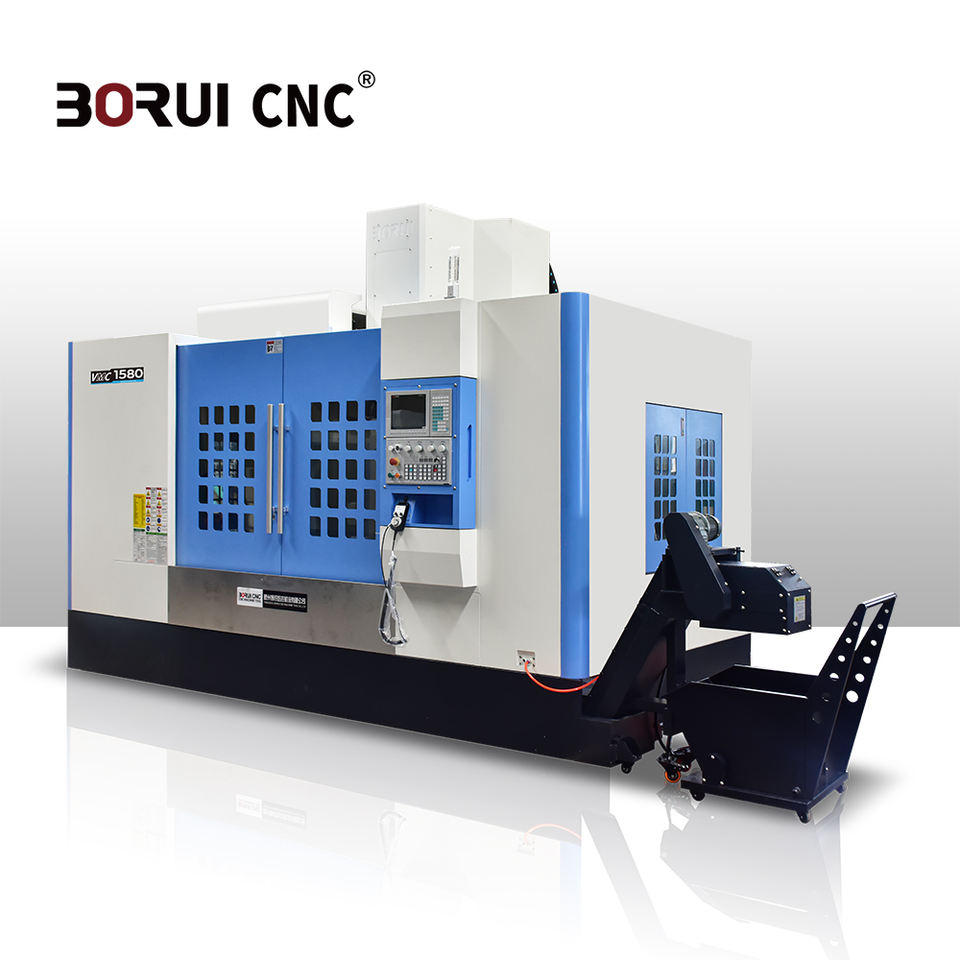

Vertical Machining Center Economic CNC VMC 5 Axis Machining Center VMC1580 5-Axis CNC Machining Center
Store rating:4.9
(195 reviews)certified
certified
Attributes
VERTICALtype
1500table travel (x) (mm)
800table travel (y) (mm)
700table travel (z) (mm)
0.004repeatability (x/y/z) (mm)
0.01positioning accuracy
spindle taper:BT50, BT40
no. of spindles:Single
tool magazine capacity:24
cnc control system:GSK
machining capacity:Medium Duty
voltage:380v
table size:1700x800
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
min. time of tool change(s):2
key selling points:Competitive Price, High Productivity
weight (t):13
max. table load(kg):1500
place of origin:Shandong, China
dimension(l*w*h):4300*3200*3100mm
range of spindle speed:0 - 6000 r.p.m
brand name:BoRui
rapid feed speed:1 - 10000 mm/min
Machine Type:Maching Center
Product name:Cnc 5 Axis MCe Certificated Cnc Machining Centerchine
Product type:Cnc 5 Axis Machine
Processing:Maching Center
Controlling Mode:Cnc System
Application:General Machinery Processing
Precision:0.004mm
Control system:SIEMENS GSK FANUC (optional)
Spindle speed:6000rpm
Name:Vertical Machine Center CNC Machine
Service
On-site service & free replacement parts
Key attributes
type
VERTICAL
table travel (x) (mm)
1500
table travel (y) (mm)
800
table travel (z) (mm)
700
repeatability (x/y/z) (mm)
0.004
positioning accuracy
0.01
spindle taper
BT50, BT40
no. of spindles
Single

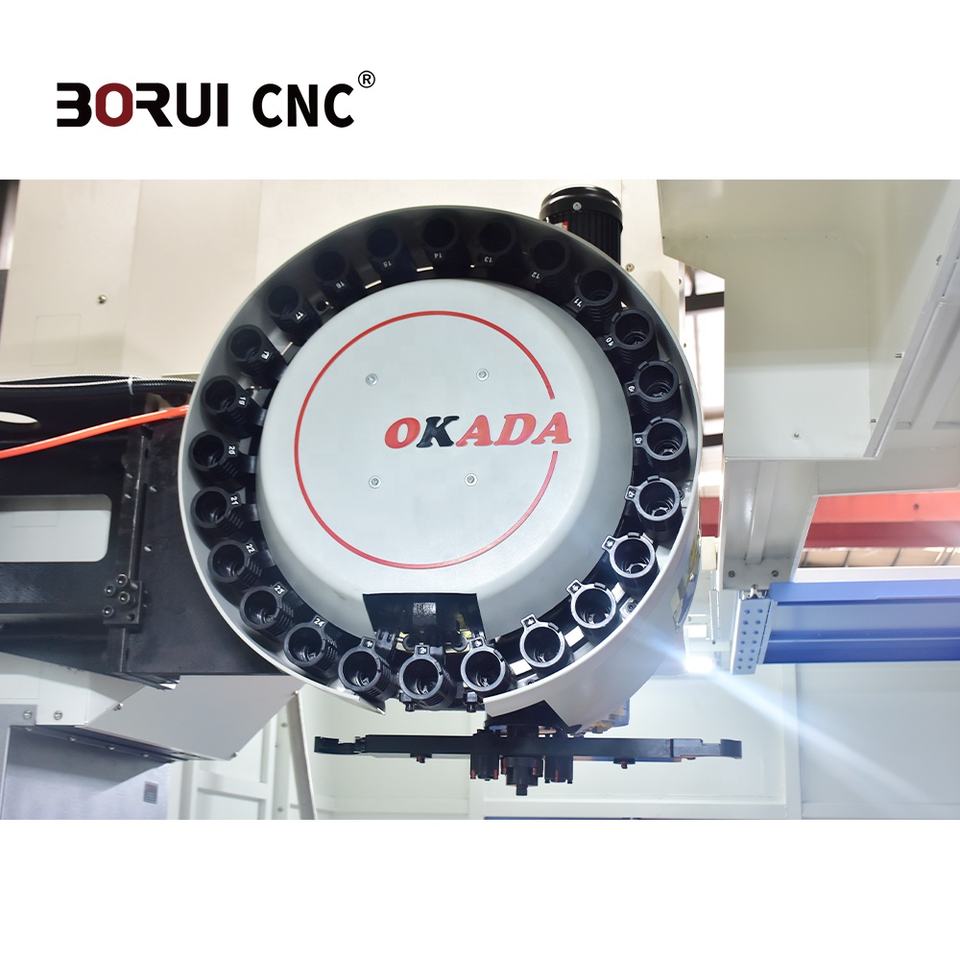

tool magazine capacity
24
cnc control system
GSK
machining capacity
Medium Duty
voltage
380v
table size
1700x800
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
min. time of tool change(s)
2
key selling points
Competitive Price, High Productivity
weight (t)
13
max. table load(kg)
1500
place of origin
Shandong, China
dimension(l*w*h)
4300*3200*3100mm
range of spindle speed
0 - 6000 r.p.m
brand name
BoRui
rapid feed speed
1 - 10000 mm/min
Machine Type
Maching Center
Product name
Cnc 5 Axis MCe Certificated Cnc Machining Centerchine
Product type
Cnc 5 Axis Machine
Processing
Maching Center
Controlling Mode
Cnc System
Application
General Machinery Processing
Precision
0.004mm
Control system
SIEMENS GSK FANUC (optional)
Spindle speed
6000rpm
Name
Vertical Machine Center CNC Machine
Packaging and delivery
Selling Units
Single item
Single package size
411X310X320 cm
Single gross weight
12300.000 kg
Lead time
Customization options
type(+ from /Min. order: 1 set)
voltage(+ from /Min. order: 1 set)
cnc control system(+ from /Min. order: 1 set)
number of axes(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
1 - 2 sets
$28,925
3 - 4 sets
$27,575
5 - 9 sets
$26,225
>= 10 sets
$23,525
Variations
Select nowmodel number: VMC1580
VMC1580
number of axes: 3
3
4
5
spindle motor power
15
Customization options
type (Min. order: 1 set)
voltage (Min. order: 1 set)
cnc control system (Min. order: 1 set)
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
