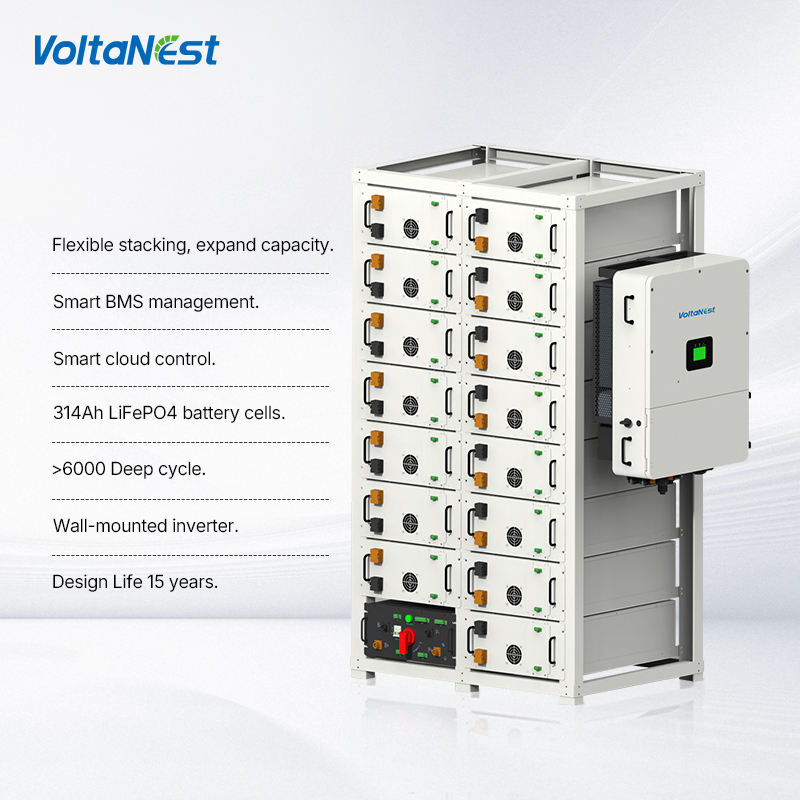

VoltaNest Rack 200KWH 177KWH 209kWh High Voltage 8MPPT All in One C & I Energy Storage With 100kW Hybrid VN-HES80~125-HR177~241

No reviews yet
$21,000-29,000
Minimum order quantity: 1 set
Select now

System Energy Range

80kVA
100kVA
125kVA

Capacity

176.84kWh(603403.13btu)
208.99kWh(713103.48btu)
241.15kWh(822837.95btu)

System Voltage Range

180~850V
Customization options
Logo/graphic design (Min. order: 1 set)
System Energy Range (Min. order: 1 set)
Capacity (Min. order: 1 set)

Key attributes

Battery Type

LiFePO4

Grid connection

Hybrid grid, Off grid, On grid

Place of Origin

Anhui, China

Model Number

VN-HES80~125-HR177~241

Brand Name

VoltaNest

Dimension (L*W*H)

1166*803*2287mm(45.91*31.61*90.04in)

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

Battery Type
LiFePO4
Grid connection
Hybrid grid, Off grid, On grid
Place of Origin
Anhui, China
Model Number
VN-HES80~125-HR177~241
Brand Name
VoltaNest
Dimension (L*W*H)
1166*803*2287mm(45.91*31.61*90.04in)
Weight
1580kg~2010kg(3483.30lb~4431.29lb)
Communication Port
CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN
Protection Class
IP20
Cooling
Intelligent air cooling
Product name
High voltage All in One C & I ESS Rack mounted
Capacity
176.84kWh;208.99kWh;241.15kWh
Nominal Output Power
80kVA;100kVA;125kVA
Cycle Life
≥6000 (25c2c, 0.5C/0.5C, 90%DOD, 70%EOL)
Operating Temperature Range
Charge -20~55c;Discharge 0~55c
Number of MPPT
8
Max.Efficiency
98.20%
OEM / ODM
Accepatable
Certification
UN38.3,MSDS, CE
Warranty
5~10 Years

Packaging and delivery

Selling Units
Single item
Single volume
0 cm³
Single gross weight
0.0 kg

Lead time

Customization options

Logo/graphic design(+ from /Min. order: 1 set)
System Energy Range(+ from /Min. order: 1 set)
Capacity(+ from /Min. order: 1 set)
