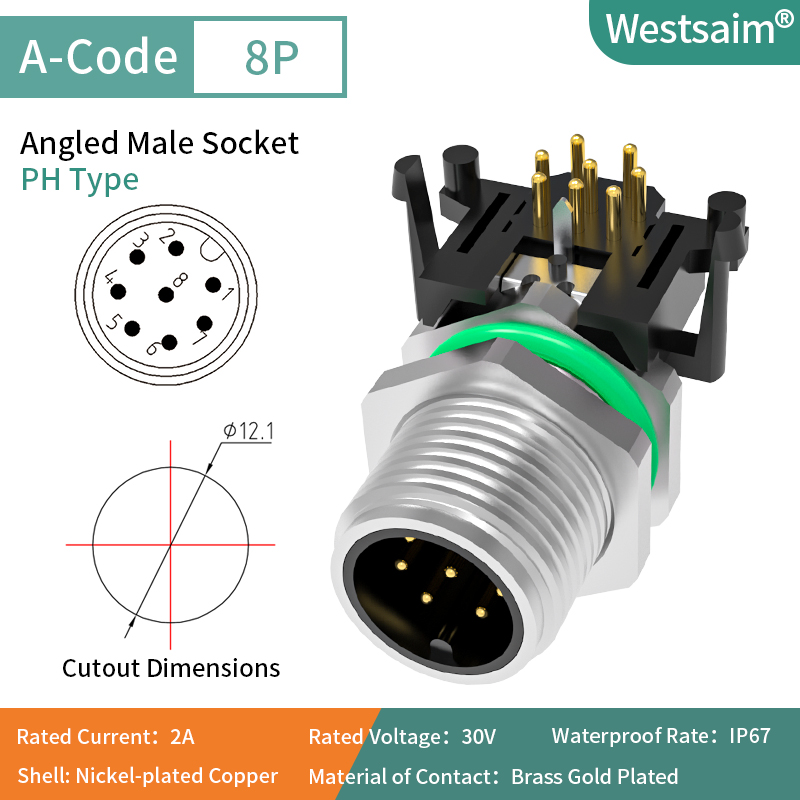

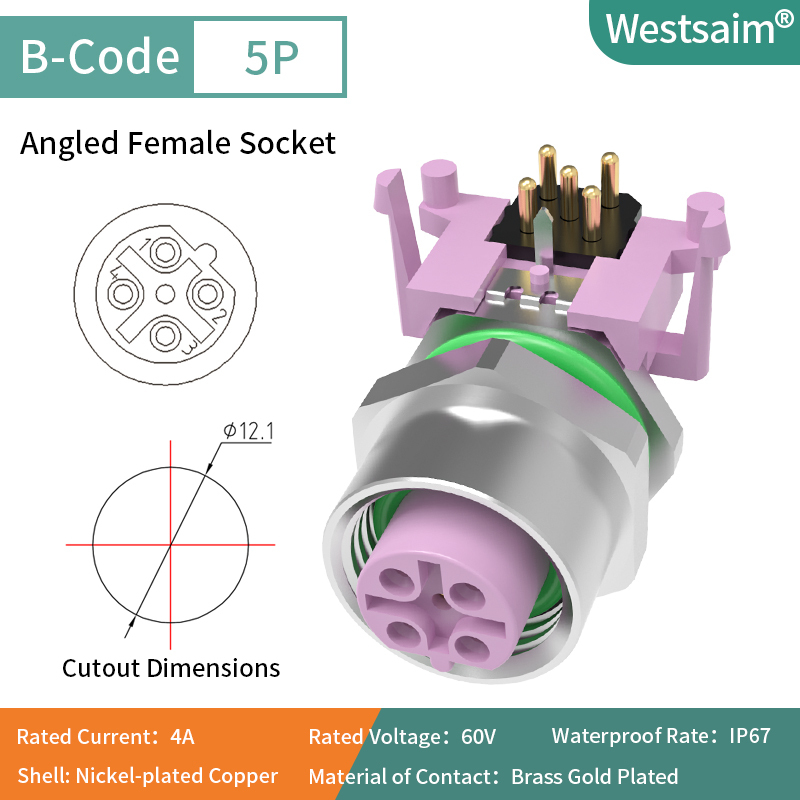

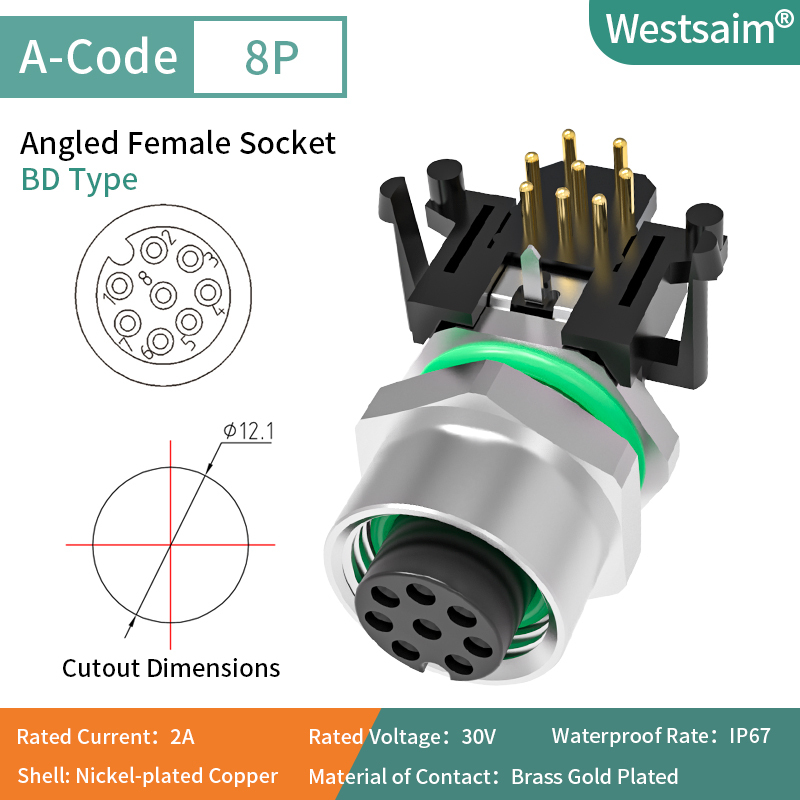

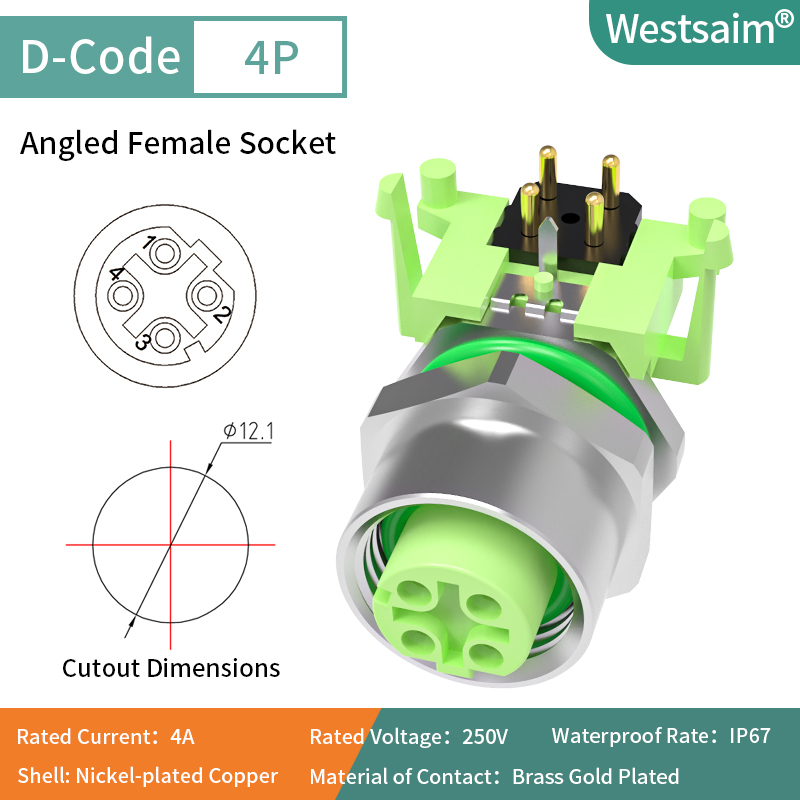

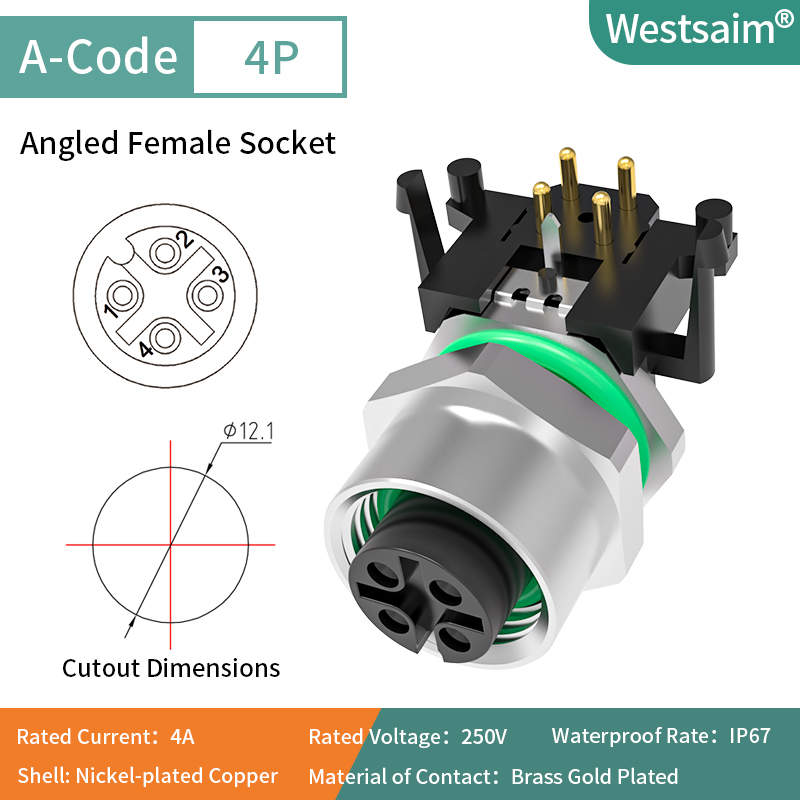

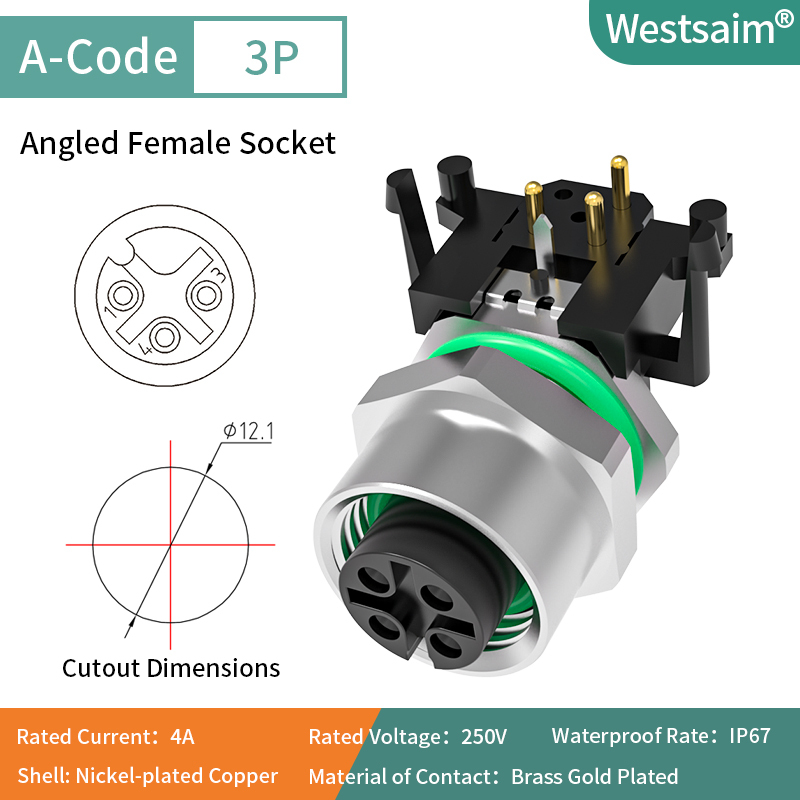

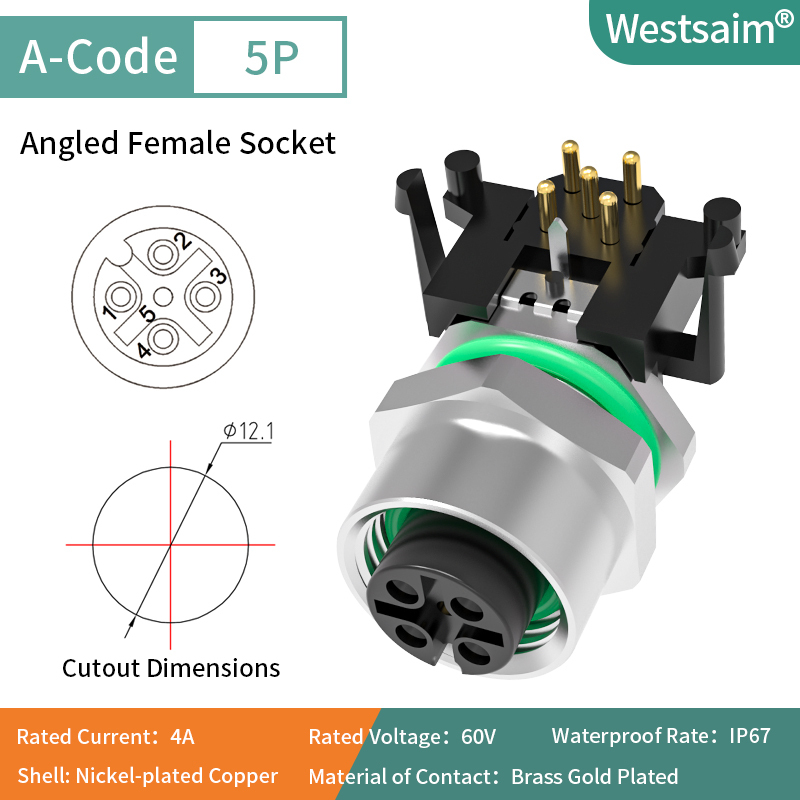

Westsaim M12 A/B/D/X/Y Code PCB Angled Male and Female Panel Mount Connector 4/5/6/8/12/17 Pin Socket Ground Shield Connector
Store rating:5.0
(155 reviews)88 soldRoHS compliant
RoHS compliant
Attributes
AutomotiveApplication
Waterproof ConnectorType
4ARated Current
60VRated Voltage
Ip67IP Level
Brass Gold PlatedContact Material
Place of Origin:Guangdong, China
Model Number:M12-A-5Pin
Brand Name:Westsaim
Gender:Male/Female
Housing Material:Brass Nickel Plated
Shape:Round
Item name:M12 A/B/D/X/Y Code PCB Angled Male and Female Mount Socket
Contacts:4/5/6/8/12/17 Pin
Rated current:6/4/2/1.5/0.5A
Rated voltage:30/48/60V
Wire gauge:AWG20/22/24/26
Temperature range:-45℃ to +125℃
Waterproof rate:IP67
Mating cycles:≥100 times
Salt Mist:48h
WESTSAIM CO., LIMITED
kl, HK2 yrs on Alibaba.comCustom Manufacturer
5/5.0(155 reviews)Reorder rate: 25%Response Time ≤ 2hOn-time delivery rate ≥ 100%
Main markets: United States, Canada, Colombia, New Zealand, Australia
#9 highest on-time delivery rate in ConnectorsMinor customizationDrawing-based customization
Key attributes
Application
Automotive
Type
Waterproof Connector
Rated Current
4A
Rated Voltage
60V
IP Level
Ip67
Contact Material
Brass Gold Plated
Housing Material
Brass Nickel Plated
Gender
Male/Female
Shape
Round
Model Number
M12-A-5Pin
Brand Name
Westsaim
Place of Origin
Guangdong, China
Item name
M12 A/B/D/X/Y Code PCB Angled Male and Female Mount Socket
Application
Industrial
Contacts
4/5/6/8/12/17 Pin
Rated current
6/4/2/1.5/0.5A
Rated voltage
30/48/60V
Wire gauge
AWG20/22/24/26
Temperature range
-45℃ to +125℃
Waterproof rate
IP67
Mating cycles
≥100 times
Salt Mist
48h
Packaging and delivery
Selling Units
Single item
Package size per batch
16X11X10 cm
Gross weight per batch
0.500 kg
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
180-day lowest prices
Minimum order quantity: 2 pieces
$280-1360
Sample price: $13.60
