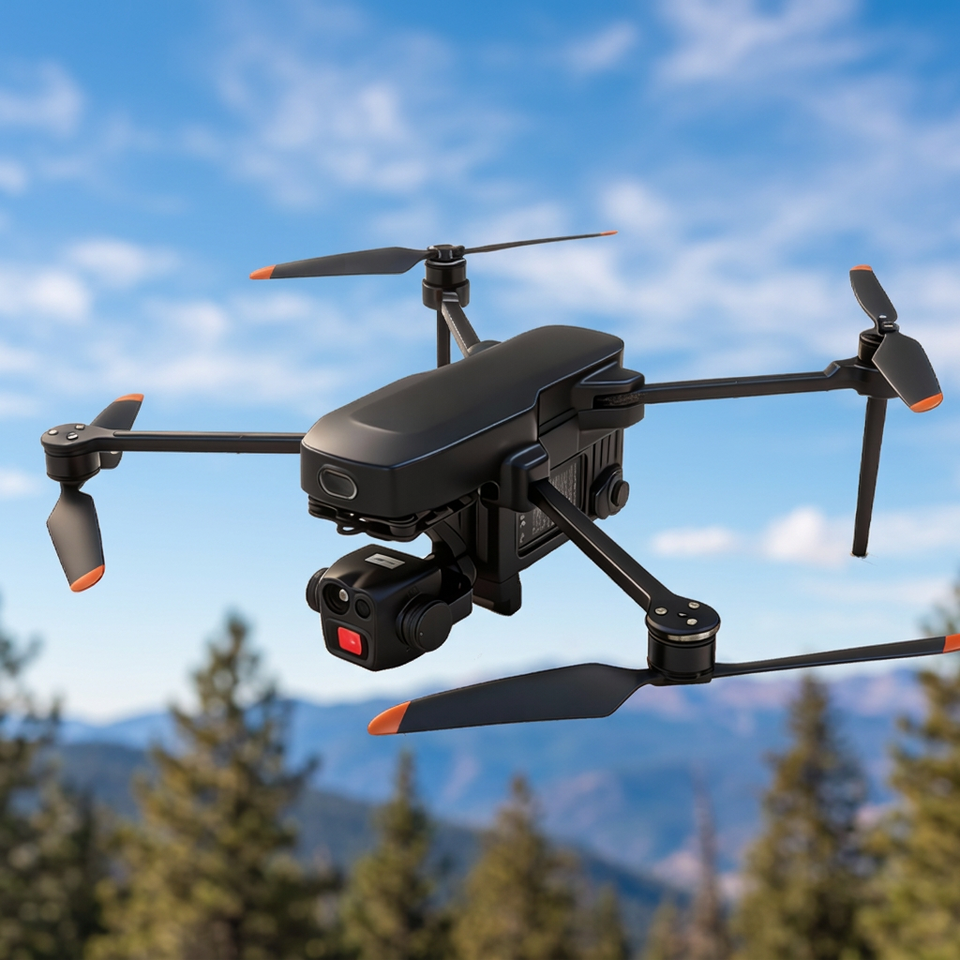

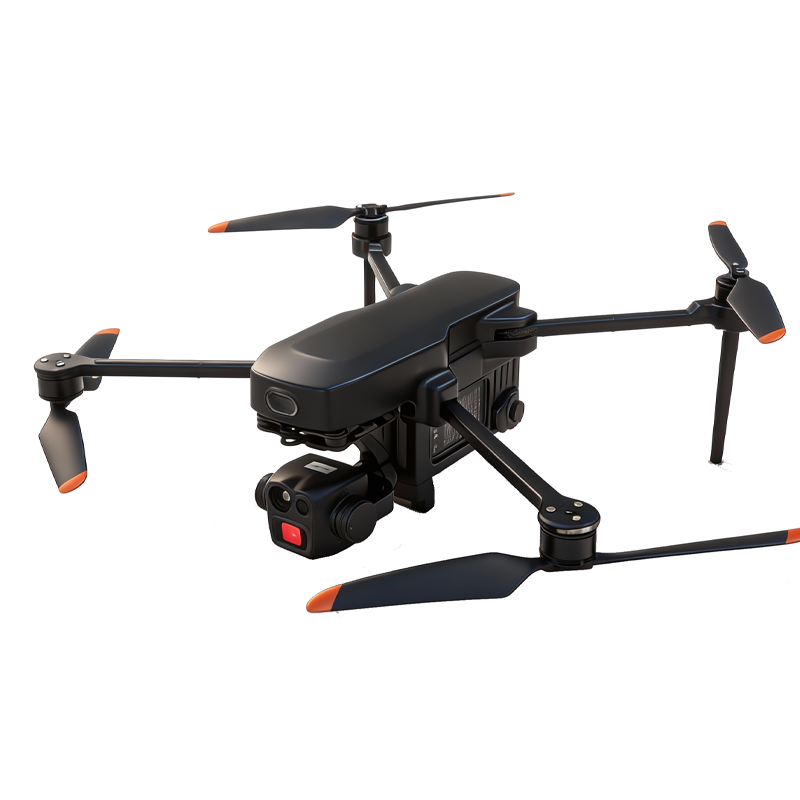

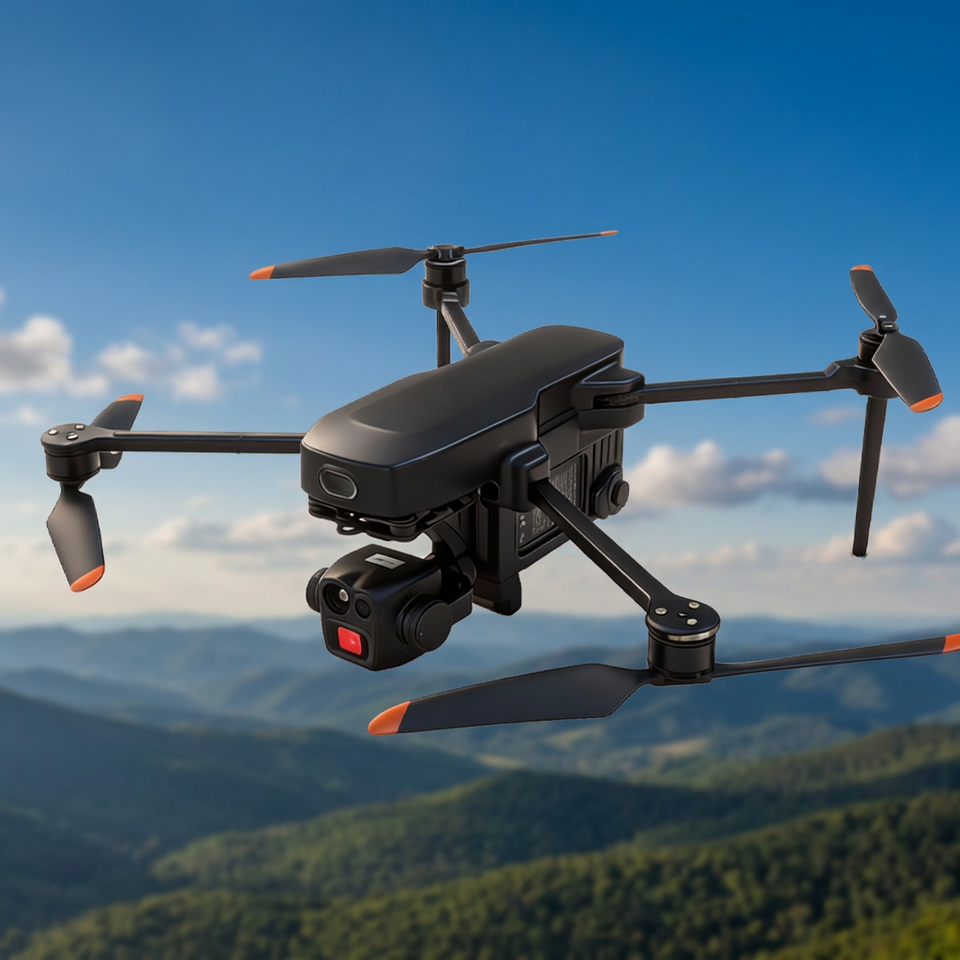

Yunque 4T Thermal Drone RTK Inspection UAV Four Sensor Camera Aircraft Industrial Mapping Security Patrol
No reviews yet
Attributes
Thermal Drone / Inspection UAV / Enterprise Dronedrone type
31-40minmaximum flight time
4KMimage transmission distance
48 MegapixelsStill Image Resolution
Wi-Fi Remote Controlcontrol type
Brushless MotorMotor
function:App Control, Foldable
place of origin:Guangdong, China
operator skill level:Beginner
Brand:OEM&ODM
gyro:3-Axis
material:Aviation-grade composite materials
private mold:No
Maximum Takeoff Weight:2150 g
Weight:1850 g
Maximum Payload Capacity:300 g
Wheelbase:451 mm
Rotor:1157 Folding Propeller
Maximum Flight Time:48 min (at 8 m/s cruising speed)
Hover Endurance:40 min
Cruise Speed:Default: 10-15 m/s, Max: 20 m/s
Positioning & Navigation:GNSS/RTK High-Precision Navigation & Positioning (Optional)
Drop System:Drop System (Optional)
Optical Flow Positioning:Optical Flow Positioning (Optional)
Airframe Material:ABS+PC, Carbon Fiber
Motor Type:High-Efficiency Brushless High-Thrust Motors
Power Source:14.8V / 8000mAh High Energy Density Lithium Battery
Mission Flight Altitude:Recommended < 1000 m
Maximum Service Ceiling:6000 m
Remote Controller:Standard 2.4 GHz & 5.8 GHz Dual-Band Controller
Takeoff/Landing Mode:Fully Autonomous / Manual
Supported Flight Modes:Manual, GPS Hold, Autonomous Flight
Protection Features:Low-Voltage Protection / Failsafe Return-to-Home
Wind Resistance:Less than Level 6 Wind
Hover Accuracy:Vertical: ±0.5 m, Horizontal: ±1.5 m
Maximum Ascent Speed:Default: 3 m/s, Max: 10 m/s; With Accessories: Max 6 m/s
Maximum Descent Speed:Default: 2 m/s, Max: 8 m/s; With Accessories: Max 6 m/s
Attitude Stability:0.5° (dynamic, after GNSS lock)
Heading Stability:2° (dynamic)
Operating Temperature Range:-20℃ ~ 50℃
Key attributes
drone type
Thermal Drone / Inspection UAV / Enterprise Drone
maximum flight time
31-40min
image transmission distance
4KM
Still Image Resolution
48 Megapixels
control type
Wi-Fi Remote Control
Motor
Brushless Motor
gyro
3-Axis
material
Aviation-grade composite materials
Brand
OEM&ODM
function
App Control, Foldable
operator skill level
Beginner
private mold
No
place of origin
Guangdong, China
Maximum Takeoff Weight
2150 g
Weight
1850 g
Maximum Payload Capacity
300 g
Wheelbase
451 mm
Rotor
1157 Folding Propeller
Maximum Flight Time
48 min (at 8 m/s cruising speed)
Hover Endurance
40 min
Cruise Speed
Default: 10-15 m/s, Max: 20 m/s
Positioning & Navigation
GNSS/RTK High-Precision Navigation & Positioning (Optional)
Drop System
Drop System (Optional)
Optical Flow Positioning
Optical Flow Positioning (Optional)
Airframe Material
ABS+PC, Carbon Fiber
Motor Type
High-Efficiency Brushless High-Thrust Motors
Power Source
14.8V / 8000mAh High Energy Density Lithium Battery
Mission Flight Altitude
Recommended < 1000 m
Maximum Service Ceiling
6000 m
Remote Controller
Standard 2.4 GHz & 5.8 GHz Dual-Band Controller
Takeoff/Landing Mode
Fully Autonomous / Manual
Supported Flight Modes
Manual, GPS Hold, Autonomous Flight
Protection Features
Low-Voltage Protection / Failsafe Return-to-Home
Wind Resistance
Less than Level 6 Wind
Hover Accuracy
Vertical: ±0.5 m, Horizontal: ±1.5 m
Maximum Ascent Speed
Default: 3 m/s, Max: 10 m/s; With Accessories: Max 6 m/s
Maximum Descent Speed
Default: 2 m/s, Max: 8 m/s; With Accessories: Max 6 m/s
Attitude Stability
0.5° (dynamic, after GNSS lock)
Heading Stability
2° (dynamic)
Operating Temperature Range
-20℃ ~ 50℃
