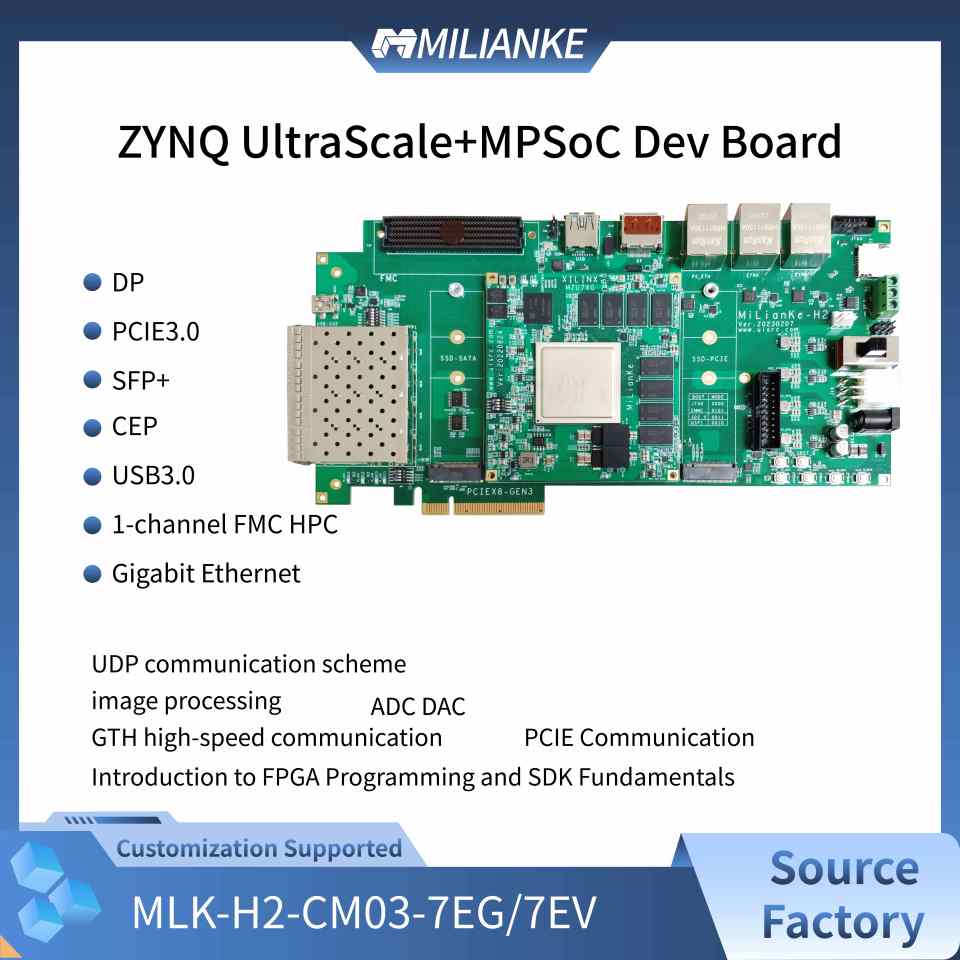

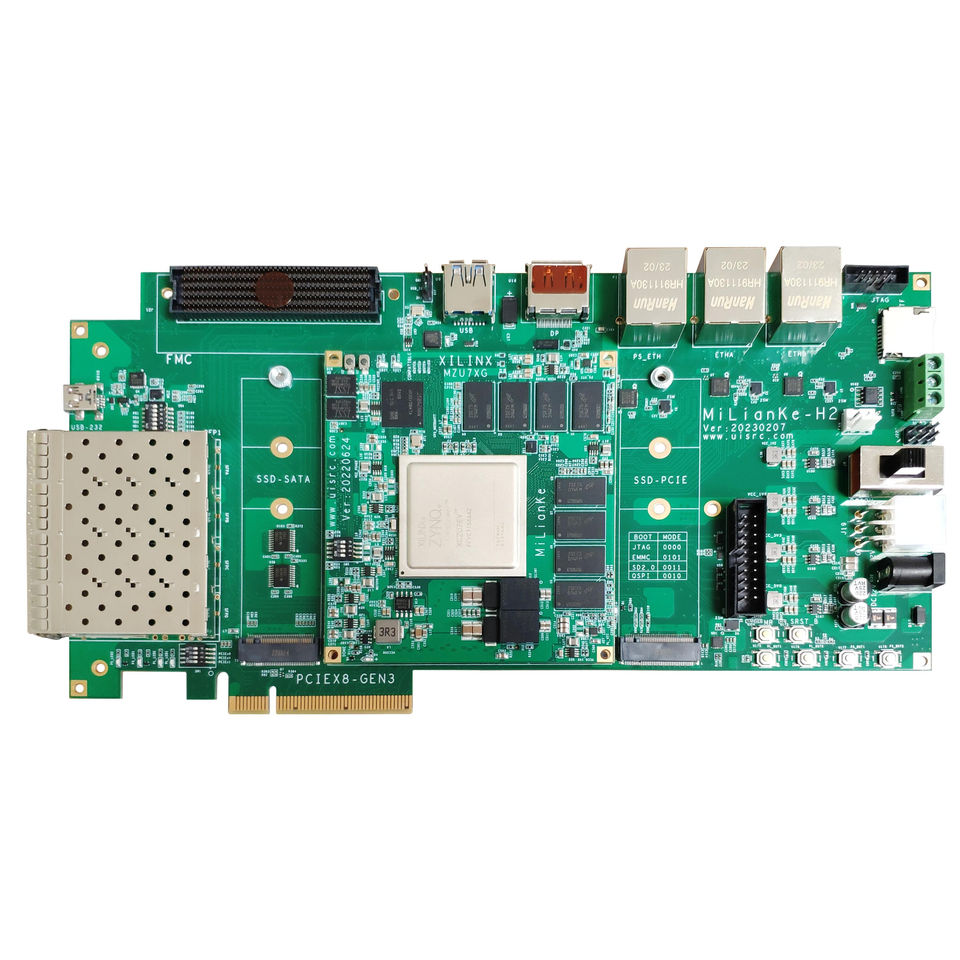

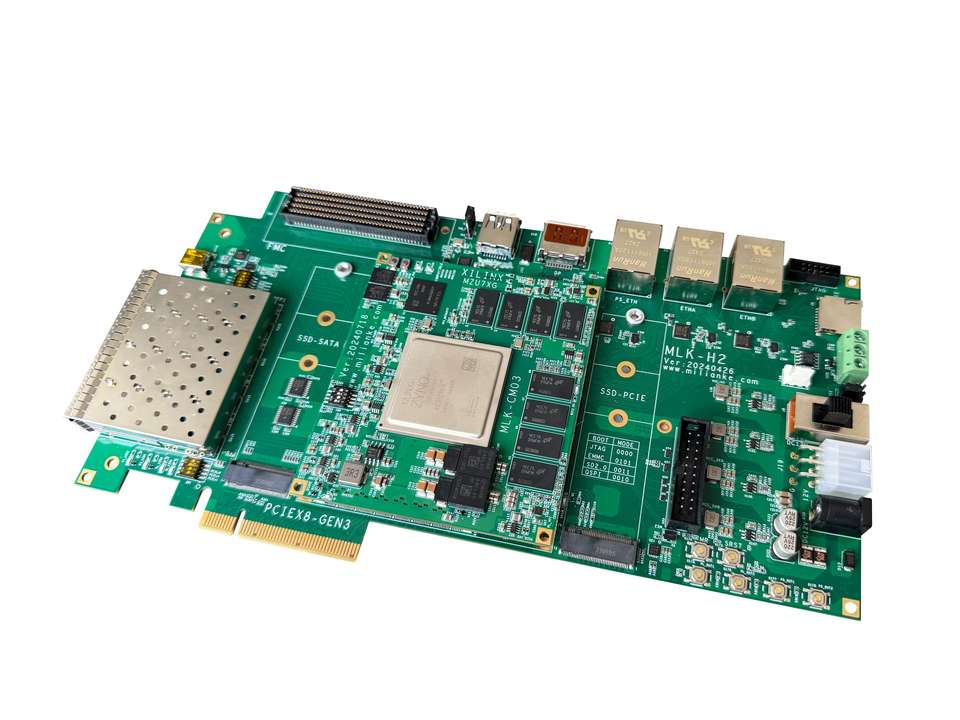

ZYNQ UltraScale+ MPSoC Series MLK-H2-CM03-7EG/7EV High-end Development Board Quad-core Cortex-A53 Dual-core Cortex-R5 Processors

No reviews yet
$1,277-1,492
Minimum order quantity: 1 piece
Select now

Specification

MLK-H2-CM03-7EG
MLK-H2-CM03-7EV

Key attributes

Type

Development Board

Core Processor

Cortex-A53/Cortex-R5

Operating System

Linux

Interface

/

Description

ZYNO UltraScale+MPSoC Dev Board

Model Number

MLK-H2-CM03-7EG/7EV

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

Type
Development Board
Core Processor
Cortex-A53/Cortex-R5
Operating System
Linux
Interface
/
Description
ZYNO UltraScale+MPSoC Dev Board
Model Number
MLK-H2-CM03-7EG/7EV
Place of Origin
Jiangsu, China
Brand Name
MILIANKE
Series
MLK-H2
Mfg. Date Code
/
Package
FFVC1156
Function
Video capture, video output, consumer electronics
Embedded
Yes
Utilized IC / Part
/
Number of A/D Converters
/
Number of Bits
/
Data Interface
/
Input Range
/
Amplifier Type
/
Output Type
/
Max Output Power x Channels @ Load
/
Voltage - Supply
12V/3A
Board Type
Evaluation Platform
Main Purpose
Not Applicable
Outputs and Type
Not Applicable
Power - Output
/
Voltage - Output
/
Current - Output
/
Voltage - Input
/
Frequency - Switching
/
Platform
/
Current - Output / Channel
/
Features
/
Channels per IC
/
Regulator Type
/
-3db Bandwidth
/
Current - Supply (Main IC)
/
Voltage - Supply, Single/Dual (±)
/
Sensitivity
/
Module/Board Type
/
Maximum Number Of IC's
/
Maximum Time
/
Sensing Range
/
Mounting Type
PCB, /

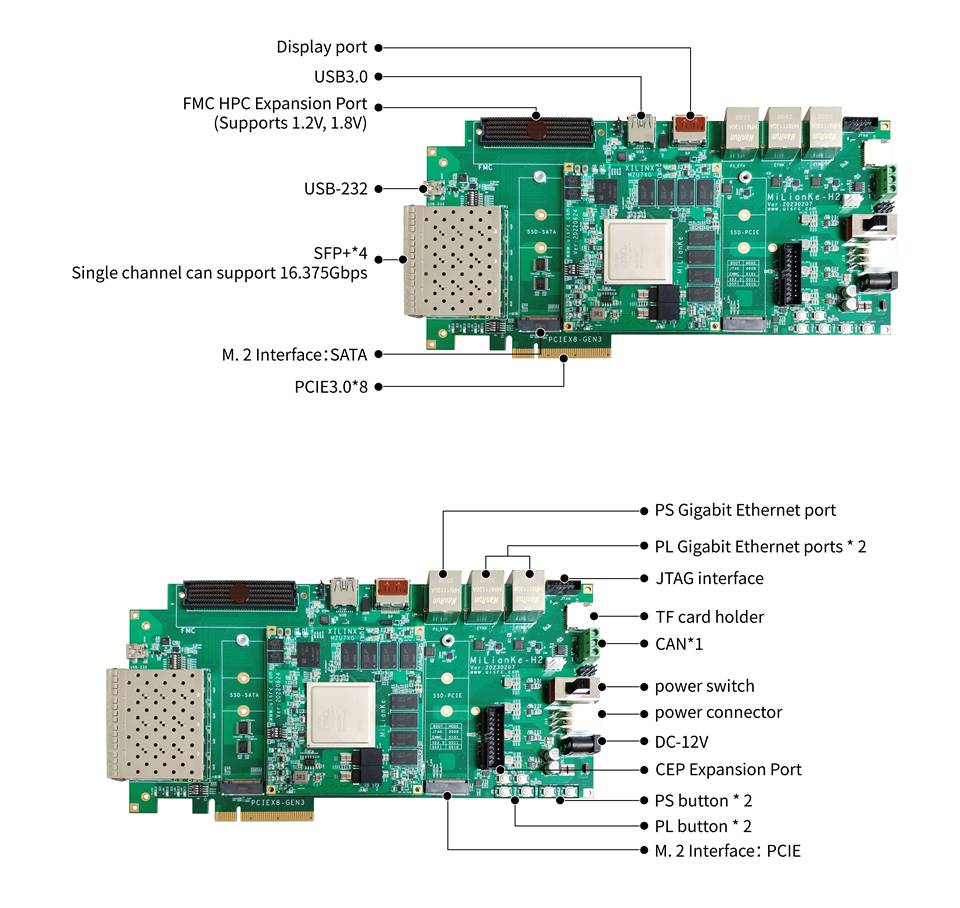

Communication Interface
USB-UART/PCIE, USB3.0/CAN, SFP+/SDIO/ETH

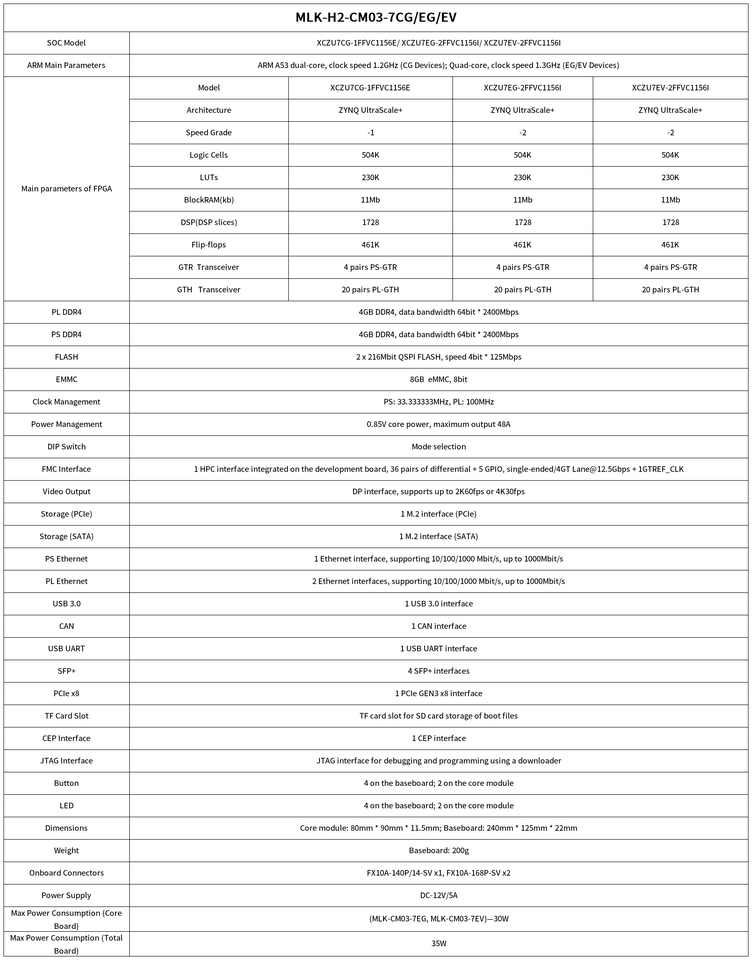

SOC model
XCZU7EG-2FFVC1156I/XCZU7EV-2FFVC1156I
Logic Cells
504K
Block RAM
11Mb
DSP(DSP slices)
1728
CLB Flip-Flops
461K
CLB LUTS
230K
PS DDR4
4GB DDR4(1GB*4),Data bandwidth 2400MHz*64Mbit
PL DDR4
4GB DDR4(1GB*4),Data bandwidth 2400MHz*64Mbit
FLASH
(256Mbit QSPI FLASH)*2 ,Speed 4bit*125Mbps
EMMC
8GB/16GB

Packaging and delivery

Selling Units
Single item
Single volume
0 cm³
Single gross weight
0.0 kg

Lead time
