Attributes
SinetongBrand Name
WH28-2Model Number
100Ω ~2MΩResistance
ChinaPlace of Origin

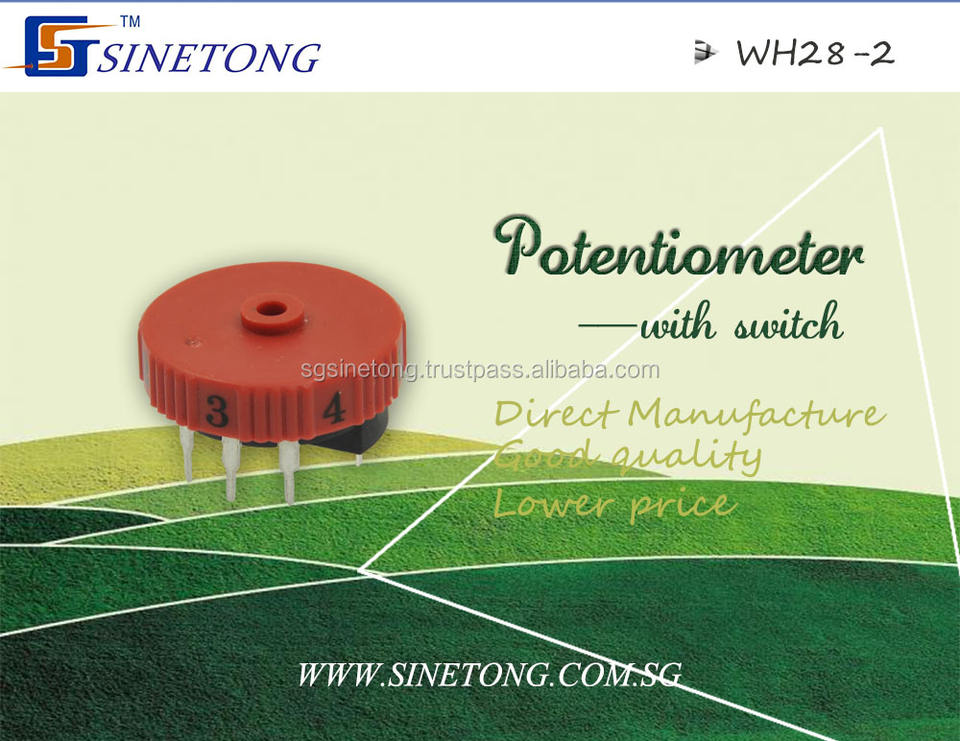

potentiometerDescription
100Ω~1MΩ ±20% (1MΩ~2MΩ ±30%)Resistance Tolerance
Technology:Carbon Film
Product:potentiometer
Total Resistance:100Ω ~2MΩ
Total Resistance tolerance:100Ω~1MΩ ±20% (1MΩ~2MΩ ±30%)
Rated power:0.15W(50℃)
rotation of noise:≤47mV
Electrical Rotation angle:220°±20°
Max operating voltage:200VDC
Total rotation angle:265°±10°
Rotation torque:0.15-3.0Ncm
Stop torque:>5Ncm
Operating Temperature:Potentiometers
Max. Operating Voltage:200VDC
Rated Power:0.15W(50℃)
